Siemens Simatic ET 200SP, Base unit, push-in terminals, bridged to left

Product Overview

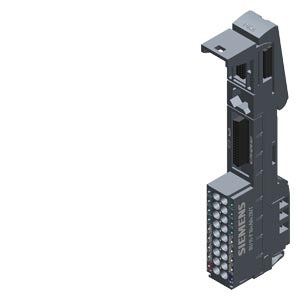

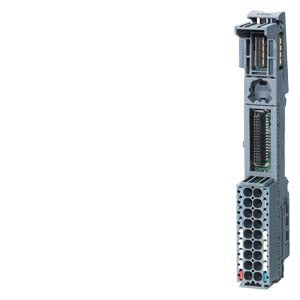

The SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B/T delivers advanced I/O module mounting capabilities with integrated temperature acquisition technology and bridged potential group configuration for demanding industrial automation applications. Featuring BU type A1 design with push-in terminals and bridged-to-left functionality, this 15mm wide base unit provides seamless potential group continuation and new load group functionality for versatile ET 200SP distributed I/O system implementations requiring precise temperature monitoring and electrical continuity.

Key Features

• BU Type A1 Configuration: Advanced base unit design optimized for ET 200SP I/O module integration with enhanced temperature acquisition capabilities
• Push-in Terminal Technology: Tool-free wiring connections supporting 0.14-2.5 mm²/AWG 26-14 wire cross-sections for rapid installation
• Integrated Temperature Sensor: Built-in temperature acquisition functionality for precise thermal monitoring and system protection
• Bridged to the Left: Potential group continuation from the left side for seamless electrical connectivity across multiple base units
• Compact 15mm Width: Space-efficient design with 15mm x 117mm footprint for maximum cabinet density optimization
• 16 Process Terminal Configuration: Comprehensive terminal layout providing 16 process terminals for complex wiring scenarios
• No AUX Terminals: Streamlined design without auxiliary terminals for simplified wiring and reduced complexity
• Color-Coded Terminal Design: Standardized color coding (CC00 to CC09) for simplified identification and maintenance procedures

Technical Specifications

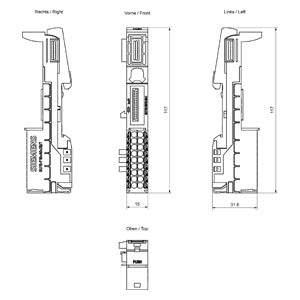

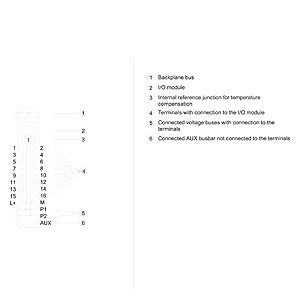

• Base Unit Type: BU15-P16+A0+2B/T, Type A1 | Dimensions: 15mm x 117mm x 35mm (W x H x D)
• Terminal Configuration: 16 process terminals + 0 AUX terminals | Weight: 0.048 kg
• Connection Type: Push-in terminals | Wire Cross-section: 0.14-2.5 mm²/AWG 26-14
• Temperature Sensor: Yes (integrated) | Potential Group: Continued from the left (bridged)
• Current Rating: Max. 10A (P1/P2 bus), Max. 2A (process terminals)
• Supply Voltage: 24V DC with external protection (24V DC/10A miniature circuit breaker)
• Operating Temperature: -30°C to +60°C (horizontal), -30°C to +50°C (vertical)
• Installation Altitude: Up to 5,000m above sea level | Isolation: 707V DC (type test)
• Protection Rating: IP20 | Package Dimensions: 4.00 x 12.30 x 2.90 cm
• HW Functional Status: FS10 and higher | New Potential Group: No (bridged from left)

Applications & Integration

Primary Applications:

• SIMATIC ET 200SP distributed I/O systems requiring temperature monitoring with potential group bridging
• Industrial process control with thermal management and electrical continuity requirements
• Automation systems needing precise temperature acquisition with seamless potential group continuation
• Applications requiring reliable temperature sensing with simplified electrical distribution across multiple units

System Compatibility:

• Compatible with SIMATIC ET 200SP I/O modules (digital, analog, communication)
• Integration with SIMATIC S7-1500 and S7-1200 controllers
• PROFINET and PROFIBUS communication protocol support
• TIA Portal engineering environment compatibility
• Hot-swappable I/O module replacement without affecting wiring
• DIN-rail mounting with lateral connection capability
• Seamless integration with other ET 200SP base units for extended potential group configurations

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4025515080886 | UPC: 040892933567
• RoHS Compliant: Since 31.01.2012 | WEEE: Take-back obligation applicable
• REACH: Contains lead monoxide and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: FM (hazardous locations), NK/Nippon Kaiji Kyokai (maritime), CCS China Classification Society (maritime)
• Environmental: Global warming potential 0.873 kg CO2 equivalent (total lifecycle)

Package Contents

• 1 × ET 200SP BaseUnit BU15-P16+A0+2B/T (Type A1), technical documentation, installation accessories

Download existing graphical data for this product:

• Technical Datasheet
• Product Information Page
• Official Support Documentation
• CAD Models and 3D Data
• ET 200SP Base Units Manual
