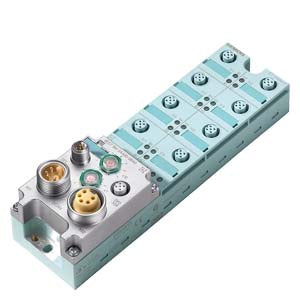

Siemens Simatic DP Basic module, 8 DI/8 DO, 2A Part number 6ES7143-3BH00-0XA0

Name: Siemens Simatic DP Basic module, 8 DI/8 DO, 2A
Brand: Siemens
SKU: 6ES7143-3BH00-0XA0

EAN / Barcode 4025515068563

Product Type Control Panel

Product Class Fieldbus, decentr. periphery - digital I/O module

Category HMI's & PLC's

Sub-category IO Module

ETIM Class Fieldbus, decentr. periphery - digital I/O module

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration

Product Description

SIMATIC DP, Basic module BM 143 ET 200ECO: 8 DI/8 DO, 2A; 8xM12, Duplicate assignment, Degree of protection IP65/67; Connection block 6ES7194-3AA00-0.A0 separately order SIMATIC ET 200eco is a compact block I/O with a PROFIBUS connection with IP65/67 degree of protection for cabinet-free installation directly at the machine. Due to its fully-sealed enclosure, the ET 200eco is mechanically very rugged and resistant to vibrations, dust, and humidity. Thanks to its ruggedness, it is particularly suitable for a wide range of applications in machine building and the automotive industry and, in particular, for tool changing machines.

In addition to digital and analog input and output modules with various characteristics, the range of products also encompasses a fail-safe module for connecting sensors and actuators up to SIL 3/PLe.

Technical Specifications

Compliance/Standards	IEC 60947-5, IEC 61131
country_of_origin	Germany
Depth	28 mm
description	SIMATIC DP, Basic module BM 143 ET 200ECO: 8 DI/8 DO, 2A; 8xM12, Duplicate assignment, Degree of protection IP65/67; Connection block 6ES7194-3AA00-0.A0 separately order
Digital inputs configurable	Yes
Digital outputs configurable	Yes
Front built-in possible	Yes
Height	210 mm
Input current at signal 1	7 mA
IP Rating	IP65
IP Rating Detailed	IP65
Number of digital inputs	8
Number of digital outputs	8
Output current	2 A
Part Depth (mm)	3,80mm
Part Height (mm)	21,00mm
Part Width (mm)	7,00mm
Permitted voltage at input	30 V
Permitted voltage at output	28.8 V
Rail mounting possible	Yes
Short-circuit protection, outputs available	Yes
Supply voltage DC	20.4 V
Supporting protocol for PROFIBUS	Yes
System accessory	Yes
Time delay at signal change	1.2 ms
Type of digital output	Transistor
Type of output voltage	DC
Type of voltage (input voltage)	DC
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	Yes
Weight (g)	0,237 Kg
Width	60 mm
