Siemens Simatic Digital output module, PNP, p-switching, 5A Siemens
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic Digital output module, PNP, p-switching, 5A Part number 6ES7132-6BF01-0AA0

EAN / Barcode 4047623408611
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - digital I/O module
Category HMI's & PLC's
Sub-category IO Module
ETIM Class Fieldbus, decentr. periphery - digital I/O module
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

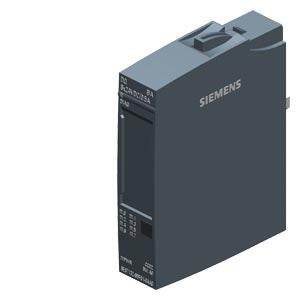

SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A Basic, Source output (PNP,P-switching) Packing unit: 1 piece, fits to BU-type A0, Colour Code CC02, substitute value output, module diagnostics for: supply voltage

Technical Specifications

Degree of protection (IP)IP20
Depth58 mm
Digital outputs configurableYes
Fieldbus connection over separate bus coupler possibleYes
Height73 mm
Number of digital outputs8
Output current0.5 A
Permitted voltage at output28.8 V
Rail mounting possibleYes
Short-circuit protection, outputs availableYes
Supply voltage DC28.8 V
System accessoryYes
Time delay at signal change0.099999999 ms
Type of output voltageDC
Voltage type (supply voltage)DC
Width15 mm
Part Width6 mm
Part Height7 mm
Part Depth2 mm
Weight36 g
Country of OriginGermany
View complete specifications on Siemens
