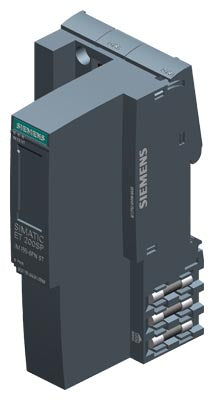

Siemens Simatic ET 200SP, Interface module IM 155-6PN

Product Overview

The SIMATIC ET 200SP PROFINET Interface Module IM 155-6PN Standard delivers reliable distributed I/O connectivity for demanding industrial automation applications requiring efficient PROFINET communication. This interface module supports up to 32 I/O modules and 16 ET 200AL modules with single hot-swap capabilities, providing seamless integration between PROFINET networks and ET 200SP distributed I/O systems in compact control environments. The module includes the essential server module (6ES7193-6PA00-0AA0) for complete system functionality.

Key Features

• IM 155-6PN Standard Interface: Standard PROFINET interface module optimized for ET 200SP systems with reliable communication capabilities
• Single Hot-Swap Technology: Module replacement capability during operation without system shutdown or communication interruption
• High Module Capacity: Supports up to 32 I/O modules and 16 ET 200AL modules for comprehensive system expansion
• Integrated Server Module: Includes server module (6ES7193-6PA00-0AA0) for complete system operation and diagnostics
• Compact Design: Space-efficient 50mm width form factor ideal for installation in compact control boxes with IP20 protection rating
• Advanced Communication: PROFINET IO Device with IRT support, PROFIenergy, and media redundancy (MRP) capabilities
• Flexible BusAdapter Support: Compatible with various SIMATIC BusAdapters (BA 2x RJ45, BA 2x FC, BA 2x M12)
• Industrial-Grade Reliability: Robust construction for demanding industrial environments with extended operational life

Technical Specifications

• Interface Module: IM 155-6PN Standard | Dimensions: 50mm x 117mm x 74mm (W x H x D)
• Supply Voltage: 19.2-28.8V DC (24V nominal) | Weight: 0.191 kg
• Power Consumption: 450mA (rated), 550mA (max) | Power Loss: 1.9W typical
• Module Capacity: Up to 32 I/O modules + 16 ET 200AL modules | Communication: PROFINET IO Device
• Hot-Swap Capability: Single hot-swap supported | Protection Rating: IP20
• PROFINET Features: IRT (250µs to 4ms), PROFIenergy, MRP client support | Address Space: 256 bytes max per module
• Compatibility: STEP 7 TIA Portal V14+, STEP 7 V5.5 SP4+ | Firmware: V4.2 (updatable)

Replacement Information

Product Phase-Out Notice: This product entered phase-out on October 1, 2024.

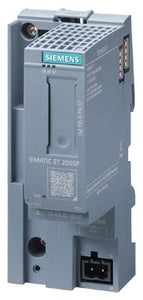

Successor Product: 6ES7155-6AU02-0BN0 - SIMATIC ET 200SP, PROFINET interface module IM 155-6 PN ST

• Enhanced Features: Multi hot-swap capability, optional PN strain relief, PN security class 1
• Improved Functionality: Multi hot-swap vs. single hot-swap, enhanced security features
• Full Compatibility: Direct replacement with improved capabilities and similar specifications

Applications & Integration

Primary Applications:

• Distributed I/O systems requiring PROFINET communication in manufacturing environments
• Industrial automation systems with space-constrained control cabinets
• Process control applications needing reliable field device connectivity with single hot-swap capability
• Manufacturing systems requiring cost-effective PROFINET interface solutions
• Factory automation with standard distributed control architectures

System Compatibility:

• Compatible with SIMATIC S7 controllers via PROFINET IO Device communication
• Integration with TIA Portal V14+ and STEP 7 V5.5 SP4+ engineering environments
• Support for various ET 200SP I/O modules (digital, analog, communication)
• Compatible with ET 200AL modules for extended system functionality
• Seamless integration with existing PROFINET networks and infrastructure

Quality & Compliance

• Status: Product Phase-Out (PM400) since October 1, 2024
• Successor: 6ES7155-6AU02-0BN0 | Origin: Germany
• EAN: 4047623408147 | UPC: 804766528835
• RoHS Compliant: Since April 28, 2017 | WEEE: Take-back obligation applicable
• REACH: Contains lead, lead monoxide, silicic acid lead salt, and other substances above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999
• Network Loading: Class 2 | Environmental: Product declaration available with lifecycle GWP data

Package Contents

• 1 × SIMATIC ET 200SP Interface Module IM 155-6PN Standard, 1 × Server Module (6ES7193-6PA00-0AA0), technical documentation, installation accessories
