Product Overview

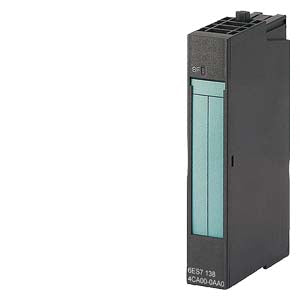

*** Spare part *** SIMATIC DP, Electronics module 2 AI I High Feature for ET 200S, 15 mm width, Cycle time per module: 0.5 ms, +/-20mA; 15 bit+sign, 4.. 20mA; 15 bit, Operational limit +/-0.1% with SF LED (group fault)

This high-performance analog input electronics module is designed for the SIMATIC ET 200S distributed I/O system. With 2 analog current inputs featuring high-precision measurement capabilities, it provides superior performance for critical current monitoring applications. Note: This is a spare part for a cancelled product (cancelled since 01.10.2023).

Key Features

• High-Feature Performance: Superior precision with ±0.1% operational limit for critical current measurement applications
• Dual Current Inputs: 2 analog inputs dedicated to current signal processing with high-resolution capabilities
• Fast Cycle Time: 0.5 ms cycle time per module enables rapid response for time-critical applications
• Flexible Current Ranges: Supports ±20mA (15 bit + sign) and 4-20mA (15 bit) signal ranges
• Compact Design: 15mm width optimizes space utilization in ET 200S configurations
• Integrated Diagnostics: SF LED provides group fault indication for system monitoring

Technical Specifications

• Input Channels: 2 analog inputs for current signals
• Resolution: 15 bit + sign (±20mA), 15 bit (4-20mA)
• Accuracy: ±0.1% operational limit
• Signal Ranges: ±20mA, 4-20mA
• Cycle Time: 0.5 ms per module
• Module Width: 15mm
• System Compatibility: SIMATIC ET 200S distributed I/O system
• Diagnostics: SF LED for group fault indication
• Net Weight: 0.044 kg
• Dimensions: 6.20 x 9.20 x 2.20 cm
• Country of Origin: Germany

Applications

• Process control systems requiring high-precision current measurement
• Critical current monitoring applications in ET 200S systems
• High-performance analog signal processing in industrial automation
• Precision current transmitter interfacing
• Time-critical current measurement applications
• Spare part replacement for existing ET 200S installations

System Integration & Benefits

• ET 200S Compatibility: Designed specifically for SIMATIC ET 200S distributed I/O system
• High Precision: Superior accuracy for critical measurement applications
• Fast Response: 0.5 ms cycle time for rapid system response
• Compact Installation: 15mm width for space-efficient mounting
• Reliable Operation: Proven performance in industrial environments
• Diagnostic Support: Integrated fault indication for system monitoring

Important Product Information

• Product Status: Spare part for cancelled product (cancelled since 01.10.2023)
• Availability: Limited availability as spare part only
• Support: Contact local Siemens office for assistance
• Replacement: Consult Siemens for current equivalent products

Compliance & Certifications

• Export Control: ECCN : 9N9999 / AL : N
• RoHS Compliance: Since: 31.12.2008
• WEEE Compliance: Yes
• EAN: 4025515073529
• UPC: 662643231380

Download existing graphical data for this product:

Product Datasheet

Technical Manual

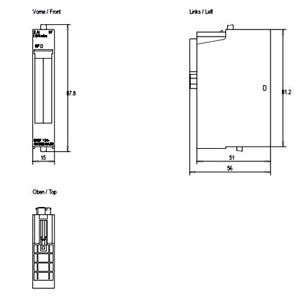

CAD Data and Dimensional Drawings
