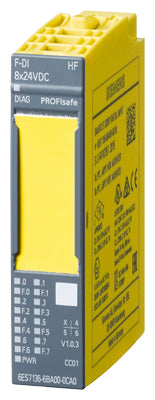

Siemens Simatic Electronic module for ET 200SP, F-DI 8x 24VDC HF

Product Overview

SIMATIC DP electronic module for ET 200SP featuring 8 fail-safe digital inputs (F-DI) with 24V DC operation in High Feature (HF) configuration and ultra-compact 15mm width design. This safety-certified module meets the highest safety standards up to Performance Level e (PLe) according to ISO 13849-1 and Safety Integrity Level 3 (SIL3) according to IEC 61508, providing reliable fail-safe input monitoring for critical safety applications with advanced diagnostic capabilities.

Key Features & Specifications

• Safety-Certified Inputs: 8 fail-safe digital inputs (F-DI) with 24V DC operation in High Feature configuration
• Compact Design: Ultra-compact 15mm width for space-efficient installation in distributed safety systems
• Safety Standards: Up to PLe (ISO 13849-1) and SIL3 (IEC 61508) certified for critical safety applications
• High Feature Configuration: Enhanced diagnostic capabilities with comprehensive safety monitoring and fault detection
• Hot-Swappable: Module replacement during maintenance without safety system shutdown
• Advanced Diagnostics: Individual channel monitoring with LED status indicators and comprehensive error reporting

Technical Specifications

• Article Number: 6ES7136-6BA01-0CA0
• Configuration: F-DI 8x24V DC HF fail-safe digital input module
• Dimensions: 15mm width, 0.038 kg weight
• Packaging: 6.90 x 7.50 x 3.20 cm, EAN: 4047623411475
• System Compatibility: SIMATIC ET 200SP distributed I/O system with safety controllers and PROFIsafe communication
• Country of Origin: Germany

Applications & Safety Functions Designed for safety-critical input monitoring including emergency stop button monitoring, safety door position detection, light curtain status monitoring, pressure-sensitive mat integration, two-hand control systems, safety switch monitoring, hazardous area input monitoring, and robotic safety fence monitoring. The module provides dual channel safety input processing with redundant safety channels and advanced fault detection for maximum reliability in safety applications.

Advanced Integration & Configuration Seamless integration with SIMATIC safety controllers through PROFIsafe communication protocol, configured via TIA Portal safety engineering tools with comprehensive safety validation features. The High Feature configuration provides enhanced diagnostic coverage including wire break detection, short circuit monitoring, cross-fault detection, and detailed safety diagnostics for preventive maintenance and troubleshooting support.

Compliance & Environmental Product Status: PM300 - Active Product | Export Control: AL: N / ECCN: 9N9999 | RoHS Compliance: Since 12.08.2021 | WEEE Take-Back: Applicable | Product Class: A - Standard stock item, returnable within guidelines

REACH Regulation Information Contains substances from the candidate list in concentrations higher than 0.1% w/w: Lead, Lead monoxide (lead oxide), Silicic acid (lead salt), and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one. These substances do not pose risks when used as intended, including disposal. Refer to product documentation for additional details.
