Product Overview

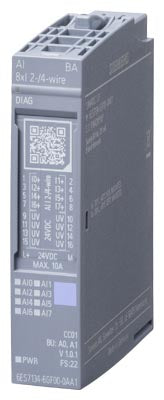

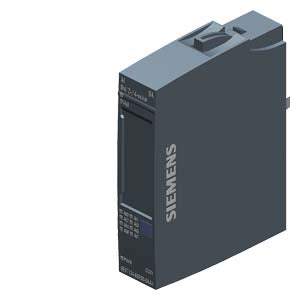

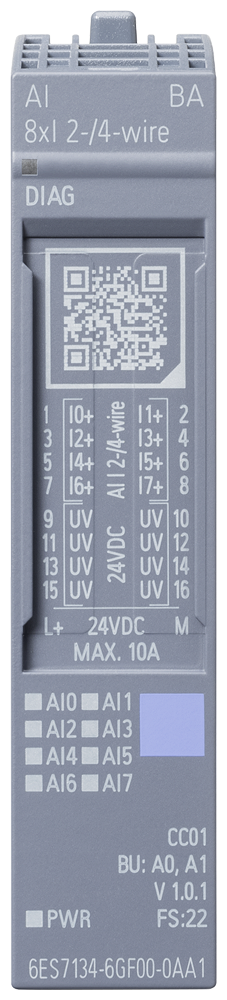

SIMATIC ET 200SP, Analog input module, AI 8XI 2-/4-wire Basic, suitable for BU type A0, A1, Color code CC01, Module diagnostics, 16 bit

This cost-effective analog input module is specifically designed for the SIMATIC ET 200SP distributed I/O system, optimized for current measurement applications. With 8 analog inputs dedicated to current signals in 2-wire or 4-wire configurations, it provides reliable and accurate current monitoring for industrial automation applications where basic functionality meets demanding performance requirements.

Key Features

• 8-Channel Current Measurement: Dedicated 8 analog inputs specifically designed for current signal processing, ideal for monitoring multiple current transmitters simultaneously.
• Flexible Connection Options: Supports both 2-wire and 4-wire configurations, accommodating various current transmitter types and installation requirements.
• Standard Current Ranges: Supports industry-standard current ranges including 0-20mA, 4-20mA, and ±20mA for maximum compatibility with existing sensors and transmitters.
• High-Resolution Measurement: 16-bit resolution ensures precise current signal acquisition with excellent accuracy for reliable process monitoring.
• Basic Performance Class: Cost-effective solution providing essential current measurement capabilities with robust performance for standard industrial applications.
• Comprehensive Diagnostics: Module diagnostics capabilities enable system monitoring and troubleshooting for improved maintenance efficiency.
• Compact Design: 15mm width single unit construction optimizes cabinet space utilization while supporting 8 current input channels.

Technical Specifications

• Input Channels: 8 analog inputs for current signals
• Resolution: 16-bit
• Accuracy: 0.3% basic error limit at 25°C, 0.5% operational error limit at all temperatures
• Signal Types: Current (I) - 0-20mA, 4-20mA, ±20mA
• Connection Options: 2-wire or 4-wire configurations
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC01
• Supply Voltage: 24V DC
• Current Consumption: 25 mA (without sensor power supply)
• Sensor Power Supply: 24V DC with short circuit protection
• Max Output Current: 0.7 A (total current for all sensors/channels)
• Net Weight: 0.036 kg

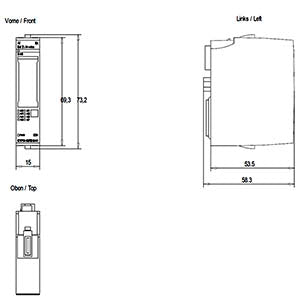

• Dimensions: 15mm (W) x 73mm (H) x 58mm (D)
• Protection Rating: IP20
• Operating Temperature: -30°C to +50°C (vertical), -30°C to +60°C (horizontal)
• Country of Origin: Germany

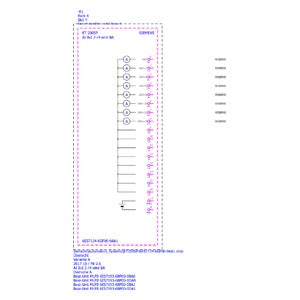

System Integration

The module seamlessly integrates with the SIMATIC ET 200SP system, requiring a basic unit for mounting and termination. The system ensures maximum flexibility with hot-swapping capabilities, allowing module replacement without system shutdown. The modular design enables easy installation and configuration, contributing to streamlined system setup and maintenance.

Applications

Ideal for industrial automation applications requiring reliable current signal monitoring, including:

• Process control systems with current transmitters
• Flow measurement applications using 4-20mA transmitters
• Pressure monitoring systems with current output sensors
• Level measurement applications
• Temperature monitoring with current output RTD transmitters
• Manufacturing equipment with current-based feedback signals
• HVAC systems with current output sensors

Signal Processing Capabilities

• Multiple Current Ranges: Supports 0-20mA, 4-20mA, and ±20mA signal ranges
• 2-Wire Transmitter Support: Direct connection to 2-wire current transmitters
• 4-Wire Transmitter Support: Compatible with 4-wire current transmitter configurations
• Sensor Power Supply: Integrated 24V DC sensor power supply with protection
• Basic Performance: Cost-effective solution for standard current measurement applications

Performance Benefits

• Cost-Effective: Basic performance class provides essential functionality at competitive pricing
• Reliable Operation: Robust construction ensures consistent performance in industrial environments
• Flexibility: Multiple connection options accommodate various transmitter types
• Easy Maintenance: Hot-swapping capabilities enable maintenance without system downtime
• Scalability: Modular design allows for easy system expansion and configuration changes
• Diagnostics: Module diagnostics facilitate efficient troubleshooting and maintenance

Installation Features

• Mechanical Coding: Type A mechanical coding element prevents installation errors
• Plug-in Connection: Simple plug-in connection system for easy installation
• Compact Footprint: 15mm width maximizes channel density in control cabinets
• Color Coding: CC01 color code ensures proper module identification and placement

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 31.03.2015
• WEEE Compliance: Yes
• Product Lifecycle: PM300:Active Product
• ATEX Approval: Gas-ex-protection, Cat. 3G
• Package Contents: 1 Analog Input Module
• EAN: 4047623405511
• UPC: 804766209383
