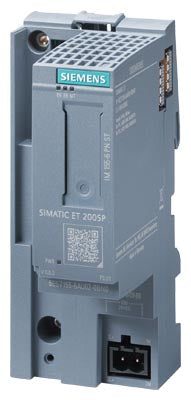

Siemens Simatic ET 200SP, profinet interface module IM 155-6 PN Part number 6ES7155-6AU02-0BN0

Product Overview

The Siemens 6ES7155-6AU02-0BN0 is an interface module (IM 155-6 PN ST) designed for the SIMATIC ET 200SP distributed I/O system. It provides a PROFINET interface, supports up to 32 ET 200SP I/O modules and up to 16 ET 200AL modules, and enables “multi-hot swap” (insertion/removal during operation). It is optimized for high-performance automation environments and offers flexible connectivity via selectable BusAdapters.

Key Features

• Interface module IM 155-6 PN ST for SIMATIC ET 200SP system
• PROFINET I/O Device with 2-port integrated switch
• Supports up to 32 ET 200SP I/O modules + 16 ET 200AL modules in one station
• Multi-hot swap capability (module removal/insertion during operation)
• Selectable BusAdapters (e.g., RJ45, M12, FC) for flexible field cabling
• Designed for industrial Ethernet networks including redundancy and diagnostics

Technical Specifications

• Article Number: 6ES7155-6AU02-0BN0
• Product Type: Interface module IM 155-6 PN ST
• Firmware Version: V6.1
• Supply Voltage (DC): 24 V DC (19.2…28.8 V permissible)
• Rated Current (24 V): 350 mA typical; max 450 mA
• Inrush Current (max): 1 A
• Power Loss (typical): 1.8 W
• Maximum I/O Modules Configurable: 32 ET 200SP modules + 16 ET 200AL modules
• Address Space (max): 1,440 bytes per station
• Interface Ports: 1 PROFINET interface with 2 ports (switch)
• Protocols / Features: PROFINET IO Device, Open IE communication, Media redundancy (MRP), Prioritized startup

Compliance & Certifications

• Designed according to Siemens industrial automation standards for ET 200SP system
• Supports PROFINET Security Class 1 and other industrial-Ethernet cybersecurity features
• RoHS-compliant and designed for use in control-cabinet, machine-automation environments

Applications

This interface module is ideal for system integrators, machine builders and automation engineers deploying distributed I/O stations in industrial automation, manufacturing plants and control cabinets. It is especially suited for applications requiring flexible field cabling, high module count per station, hot-swap capability, and integration into PROFINET networks with diagnostics and redundancy support.
