Product Overview

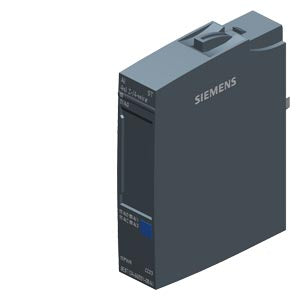

SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 4XI 2-/4-WIRE STANDARD, PACKING UNIT: 1 PIECE, FITS TO BU-TYPE A0, A1, COLOR CODE CC03, MODULE DIAGNOSIS, 16BIT, +/-0,3%

This reliable analog input module is designed for the SIMATIC ET 200SP distributed I/O system, providing standard current measurement capabilities. With 4 analog inputs supporting 2-wire or 4-wire configurations, it delivers consistent performance for industrial automation applications requiring 4-20mA current monitoring.

Key Features

• 4-Channel Current Measurement: Dedicated inputs for current signal processing with 4-20mA range support
• Flexible Wiring: 2-wire and 4-wire configurations accommodate various current transmitter types
• Standard Performance: Proven reliability with ±0.3% accuracy for typical industrial applications
• Comprehensive Diagnostics: Wire break detection, overflow/underflow monitoring, and module status reporting
• Compact Design: 15mm width optimizes cabinet space while supporting 4 current channels
• Hot-Swap Capability: Module replacement without system shutdown for improved maintenance

Technical Specifications

• Input Channels: 4 analog inputs for current signals
• Resolution: 16-bit (15-bit for 4-20mA range)
• Accuracy: ±0.3% operational error limit
• Signal Range: 4-20mA current

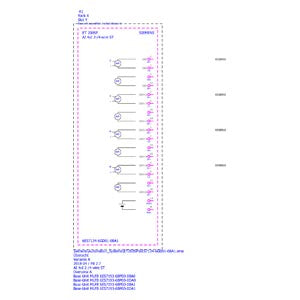

• Connection Options: 2-wire or 4-wire configurations
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC03
• Supply Voltage: 24V DC (19.2V to 28.8V range)
• Current Consumption: 37 mA maximum (without sensor supply)

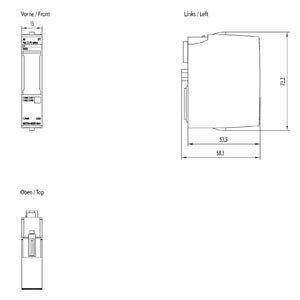

• Dimensions: 15mm (W) x 73mm (H) x 58mm (D)
• Protection Rating: IP20
• Country of Origin: Germany

Applications

• Process control systems with 4-20mA current transmitters
• Flow, pressure, and level measurement applications
• Temperature monitoring with current output RTD transmitters
• Manufacturing equipment with current-based feedback signals
• HVAC systems with current output sensors
• General industrial automation with standard current loops

System Integration & Benefits

• Easy Integration: Seamless compatibility with SIMATIC ET 200SP system requiring basic unit for mounting
• Sigma-Delta Technology: Advanced conversion technology for stable and accurate measurements
• Proven Reliability: Standard performance class with established track record in industrial applications
• Cost-Effective: Balanced performance and cost for typical current measurement applications
• Maintenance-Friendly: Hot-swapping and comprehensive diagnostics reduce downtime

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 15.12.2017
• WEEE Compliance: Yes
• EAN: 4047623409212
• UPC: 804766680885
