Product Overview

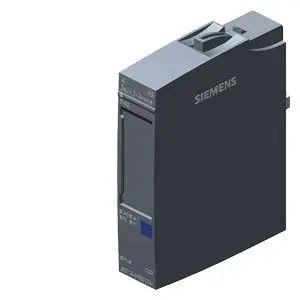

SIMATIC ET 200SP, Analog input module, AI 2x U/I 2-.4-wire High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.3%

This high-performance analog input module is specifically designed for the SIMATIC ET 200SP distributed I/O system, optimized for high-speed voltage and current measurements. With 2 analog inputs supporting both voltage (U) and current (I) signals in 2-wire or 4-wire configurations, it delivers rapid response times and reliable performance for demanding industrial automation applications.

Key Features

• High-Speed Performance: Optimized for rapid analog signal processing with 10 microsecond sampling time, enabling fast measurement and control responses in time-critical applications.
• Dual Signal Support: 2 analog inputs capable of processing both voltage (U) and current (I) signals, providing versatility for different sensor and transmitter types.
• Flexible Wiring Options: Supports both 2-wire and 4-wire configurations, accommodating various sensor connection requirements and installation scenarios.
• Precision Measurement: 16-bit resolution with ±0.3% accuracy ensures reliable and accurate analog signal processing for critical control applications.
• Advanced Channel Diagnostics: Comprehensive channel diagnostics capabilities enable proactive maintenance and system optimization through detailed monitoring of individual input channels.
• Compact Design: 15mm width single unit construction optimizes cabinet space utilization while maintaining full functionality and performance.
• Industrial Grade Construction: Robust design meets rigorous industrial standards for reliable operation in demanding environments.

Technical Specifications

• Input Channels: 2 analog inputs for voltage/current signals
• Resolution: 16-bit
• Accuracy: ±0.3% basic error limit
• Signal Types: Voltage (U) and Current (I)

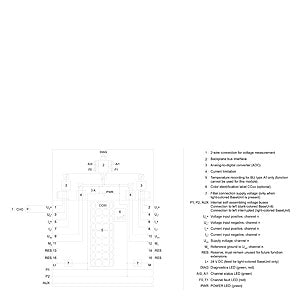

• Connection Options: 2-wire or 4-wire configurations
• Sampling Time: 10 microseconds
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC00
• Supply Voltage: 19.2V DC
• Current Consumption: 39 mA
• Net Weight: 0.040 kg

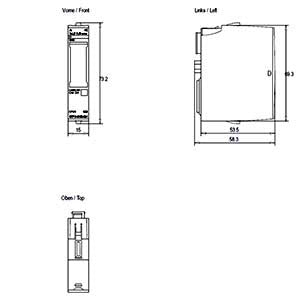

• Dimensions: 15mm (W) x 73mm (H) x 58mm (D)
• Protection Rating: IP20
• Operating Temperature: -30°C to +50°C (vertical), -30°C to +60°C (horizontal)
• Country of Origin: Germany

System Integration

The module seamlessly integrates with the SIMATIC ET 200SP system, requiring a basic unit for mounting and termination. The system ensures maximum flexibility with hot-swapping capabilities, allowing module replacement without system shutdown. The modular design enables easy installation and configuration, contributing to streamlined system setup and maintenance.

Applications

Ideal for industrial automation applications requiring high-speed, precise analog signal processing, including:

• Process control systems with rapid signal changes
• Manufacturing equipment requiring fast analog feedback
• Motor control systems with high-speed analog monitoring
• Packaging machinery with dynamic analog measurements
• Chemical processing plants with real-time analog control
• Food and beverage production with precise analog monitoring
• Quality control systems requiring fast analog signal processing

Performance Benefits

• High-Speed Response: 10 microsecond sampling time for rapid system response
• Versatility: Dual voltage/current capability with flexible wiring options
• Reliability: Robust construction ensures consistent performance in challenging industrial environments
• Flexibility: Hot-swapping capabilities enable maintenance without system downtime
• Scalability: Modular design allows for easy system expansion and configuration changes
• Diagnostics: Advanced channel diagnostics facilitate efficient troubleshooting and maintenance

Signal Processing Capabilities

• Voltage Measurement: Precise voltage signal acquisition and processing
• Current Measurement: Accurate current signal monitoring and conversion
• Multi-Wire Support: Flexible connection options for various sensor types
• Fast Acquisition: High-speed analog-to-digital conversion for time-critical applications

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 31.03.2015
• WEEE Compliance: Yes
• Package Contents: 1 Analog Input Module
• EAN: 4025515082712
• UPC: 887621264918

Download existing graphical data for this product:

Product Datasheet

Technical Manual

CAD Data and Dimensional Drawings

Product Certification
