Siemens Circuit breaker for motor protection, size S00, 5.2A

Product Overview

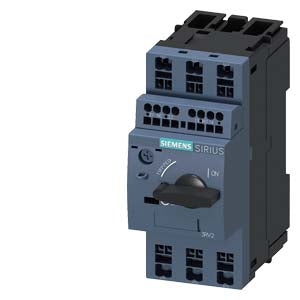

The 3RV2011-0EA25 circuit breaker is designed for motor protection in size S00 applications, featuring CLASS 10 A-release protection with an adjustable current range of 0.28 to 0.4 A and N-release rated at 5.2 A. This SIRIUS 3RV2 motor starter protector provides comprehensive overload and short-circuit protection for low-current three-phase motors and electrical loads, incorporating spring-type terminal connections and standard switching capacity with transverse auxiliary switches (1 NO+1 NC) for reliable industrial motor control applications.

Key Features

• Current Range: 0.28 to 0.4 A adjustable overload release
• Protection Class: CLASS 10 tripping characteristic according to IEC 60947-4-1
• Size: S00 (45mm width) for compact installations
• Short-Circuit Release: 5.2 A (N-release) factory-set
• Terminal Type: Spring-type terminals for tool-free connections
• Switching Capacity: Standard switching capacity rating
• Auxiliary Switches: Integrated transverse auxiliary switches (1 NO+1 NC)
• Phase Loss Protection: Built-in phase loss sensitivity
• Manual Operation: Rotary operating mechanism with integrated locking device
• Test Function: Built-in test slide for overload release verification
• Breaking Capacity: Up to 100 kA at 400 V AC
• Operating Temperature: -20°C to +60°C with temperature compensation
• Mounting: DIN rail or screw mounting options
• Weight: 0.692 lb (0.314 kg)
• Series: Advanced SIRIUS 3RV2 generation

Technical Specifications

• Frequency Rating: 50/60 Hz
• Rated Operational Voltage: Up to 690 V AC
• Poles: 3-pole configuration
• Connection System: Spring-type clamp terminals
• Conductor Cross-Section: 2 x (0.75...2.5) mm² maximum
• Breaking Capacity: Up to 100 kA short-circuit breaking capacity at 400 V AC
• Installation Altitude: Up to 2,000 m above sea level
• Degree of Protection: IP20 front face
• Standards Compliance: IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• Lockout Capability: Padlock shackle diameter 3.5-4.5 mm
• Auxiliary Switch Configuration: 1 NO + 1 NC transverse auxiliary switches
• Rated Permanent Current (Iu): 0.4 A
• Rated Operation Power (AC-3, 230V): 0.06 kW
• Rated Operation Power (AC-3, 400V): 0.09 kW

Applications

The 3RV2011-0EA25 is suitable for protecting small three-phase motors and electrical loads in industrial automation applications where reliable overload and short-circuit protection is required for low motor currents between 0.28-0.4 A. It provides inverse time-delayed protection against overload conditions and instantaneous protection against short-circuits, making it ideal for small motor drives, instrumentation systems, automation equipment, precision machinery, conveyor systems, and SIRIUS modular system integration requiring size S00 protection for low-power motor applications with auxiliary switch feedback requirements.

Operation

When an overload occurs, the motor current rises above the set rated current, heating the integrated bimetal element and causing the device to trip through thermal-magnetic operation. For short-circuit conditions, the electromagnetic release provides instantaneous protection at 5.2 A. The rotary operating mechanism allows manual on/off operation with clear position indication and trip status display. The integrated transverse auxiliary switches provide 1 NO + 1 NC contacts for status feedback and control circuit integration. The built-in test function enables verification of overload release operation without electrical load. After tripping, the device must be manually reset by moving the rotary switch to OFF position before reclosing.

Product Information

• Net Weight: 0.692 lb (0.314 kg)
• Packaging Dimensions: 2.067 x 4.724 x 4.193 inches
• EAN: 4011209840928
• UPC: 662643921519
• Country of Origin: Germany
• Product Class: Standard product, returnable

Compliance & Environmental

• RoHS Compliance: Yes (since 10/01/2009)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, EN 60947-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, EN 60947-4-1

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual

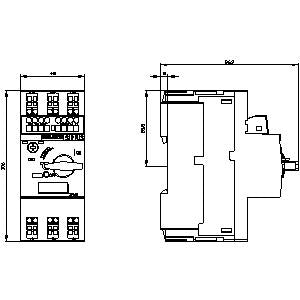

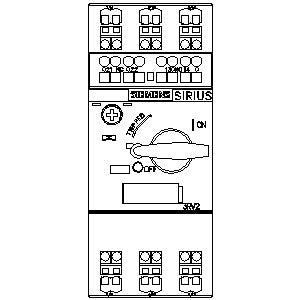

• Dimension Drawings

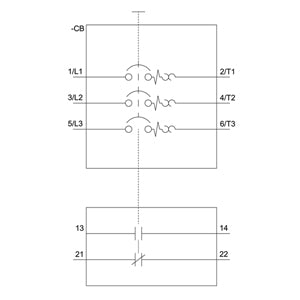

• Circuit Diagrams
