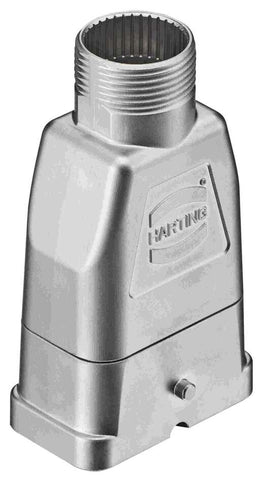

Harting Hood for Han-Compact, single locking, top entry, M25

Product Overview

The Han Compact-gg-M25-EMC (article no. 19 12 008 0412) is an EMC-compliant connector housing from Harting's Han-Compact series. Features M25 cable gland entry with electromagnetic compatibility (EMC) shielding capabilities, separate PE terminating point, and compatibility with all Han-Compact inserts for industrial automation applications requiring electromagnetic interference protection.

Key Features:

• EMC-compliant design for electromagnetic interference protection
• M25 cable gland entry for secure cable connection
• Half cable gland configuration (gg-type)
• Separate PE (protective earth) terminating point
• Compatible with all Han-Compact size inserts
• IP65 protection rating for environmental sealing
• Operating temperature range: -40°C to +125°C
• UL/CSA certified for North American markets

Applications:

Industrial automation systems requiring EMC protection, control panels in electromagnetic environments, manufacturing equipment with sensitive electronics, process control installations, machinery applications with motor drives, frequency converter installations, electromagnetic interference-sensitive applications.

Technical Specifications:

• Category: Hoods/Housings
• Series: Han-Compact
• Type: Half cable gland housing (gg-type)
• EMC Features: Electromagnetic compatibility shielding
• Cable Entry: M25 thread
• PE Connection: Separate protective earth terminating point
• Insert Compatibility: All Han-Compact size inserts
• Protection Rating: IP65 (IEC 60529)
• Operating Temperature: -40°C to +125°C
• Connector Standard: IEC 61984 compliant
• UL Rating: Type 12 (UL 50/UL 50E)

EMC Performance

Provides electromagnetic compatibility through integrated shielding design that minimizes electromagnetic interference (EMI) and radio frequency interference (RFI). The separate PE terminating point ensures proper grounding for optimal EMC performance in industrial environments with high electromagnetic activity.

System Benefits:

• Integrated EMC shielding reduces electromagnetic interference
• Separate PE terminating point ensures proper grounding
• Compatible with full range of Han-Compact inserts
• IP65 protection against dust and water ingress
• High-temperature rating up to 125°C for demanding applications
• UL/CSA certification for global market acceptance

Standards:

• IEC 61984 (industrial connector standards)
• IEC 60529 (IP65 protection rating)
• UL 50/UL 50E (Type 12 enclosure rating)
• CSA-C22.2 No. 182.3 certification
• EMC compliance standards
• Industrial automation connector standards

Compliance:

• UL listed and CSA certified
• EMC directive compliant
• RoHS compliant materials
• Industrial safety standards
• Environmental protection requirements
• North American electrical codes
