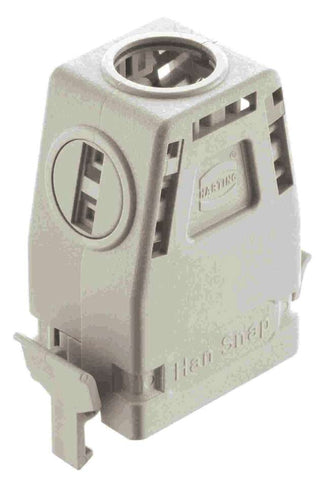

Harting Han-snap Shell housing, snap-in latch, top/side entry

Product Overview

The Han Snap Plastic Housing Size 6 (SKU: 09330060401) is a high-performance plastic housing designed for Han-Snap® quick-lock connector systems. This size 6B housing features snap-in latches for rapid installation and provides reliable connector protection in enclosed electrical environments. Engineered with durable polycarbonate construction, this housing offers exceptional temperature resistance and is ideal for use in protected switch rooms and control cabinets where IP65/67 protection is required.

Key Features:

• Quick-Lock System: Snap-in latches enable fast, tool-free installation
• Size 6B Configuration: Compatible with all standard Han® B size 6 inserts
• Durable Construction: High-quality polycarbonate (PC) material
• Temperature Resistant: Wide operating range from -40°C to +125°C
• IP65/67 Protection: Dust tight and water resistant when properly mated
• Top/Side Entry: Flexible cable entry options for versatile installations
• Strain Relief: Integrated cable tie provision for secure cable management
• Space-Saving Design: Compact profile for efficient cabinet utilization

Technical Specifications:

• Article Number: 09 33 006 0401
• Category: Hoods/Housings
• Series: Han-Snap®
• Housing Size: 6B
• Housing Material: Polycarbonate (PC)
• Color: RAL 7032 (Pebble Grey)
• Operating Temperature: -40°C to +125°C
• Protection Class: IP20 (unmated), IP65/67 (mated)
• Lock Type: Side latch lock on hood
• Entry Configuration: Top/side entry
• Strain Relief: Via cable tie
• Version: Type 1

Applications:

Essential for industrial connector applications within protected environments requiring quick connection/disconnection capabilities. Ideal for control cabinet installations, switch room applications, DIN rail mounting systems, industrial automation equipment, modular machinery connections, maintenance-accessible installations, and any application where rapid connector assembly with reliable environmental protection is required.

Compatibility:

• Insert Compatibility: Suitable for all inserts of housing size 6B including:
  • Han D® 40 and 64-pin
  • Han DD®
  • Han E®
  • Han® EE/EEE
  • Han® ES
  • Han Hv E®
  • Han® Hv ES
  • Han® HsB
• Mounting Options: DIN rail or fixed mounting compatible
• System Integration: Part of complete Han-Snap® modular system
• Cable Management: Compatible with standard cable ties for strain relief

Installation & Tools:

• Tool-Free Installation: Snap-in latches eliminate need for tools
• Mounting Flexibility: Suitable for rail or panel mounting configurations
• Cable Entry: Top or side cable entry options
• Strain Relief Method: Integrated cable tie anchor points
• Quick Assembly: Designed for rapid prefabrication of connectors
• Locking Cycles: Rated for thousands of mating cycles
• Professional Grade: Engineered for industrial assembly applications
• Safety Compliance: PE connection consistency must be verified by user
