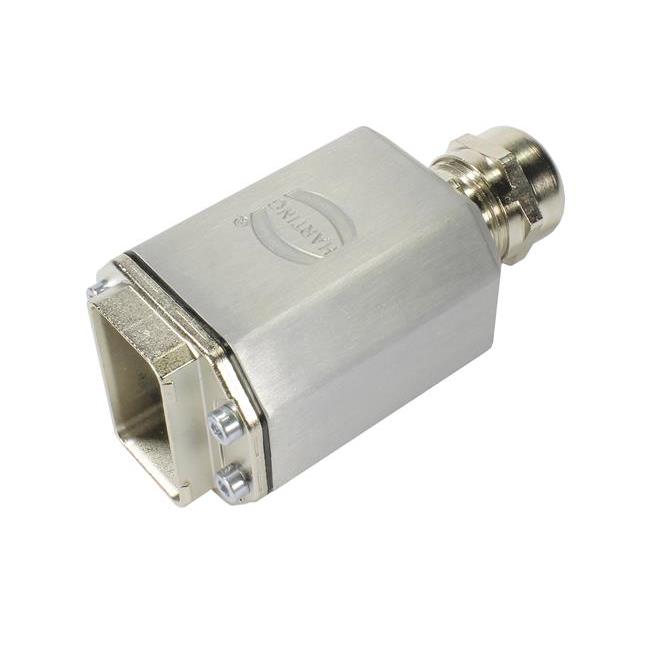

Harting Han Connector, Pushpull, spring clamp, 5-contact, 16A

Product Overview

AIDA compliant coupling (SKU: 6104201108501) designed for industrial automation power applications. This Han PushPull Power L coupling features spring clamp termination with 5 contacts rated for 16A, providing secure and reliable connections for AIDA standard compliant installations in industrial environments.

Key Features

• AIDA compliant design meeting construction industry standards
• Han PushPull V14 series coupling connector
• Spring clamp termination for tool-free field assembly
• 5-contact configuration rated for 16A current
• Intuitive PushPull locking mechanism
• Metal housing construction for durability
• Gold over nickel plating on mating side for corrosion resistance
• Tin over nickel plating on termination side

Technical Specifications

• Series: Han PushPull (V14)
• Contact Configuration: 5 contacts
• Rated Current: 16A
• Rated Voltage: 24V
• Conductor Cross-section: 0.75 - 2.5mm² (AWG 18 - AWG 13)
• Rated Impulse Voltage: 4kV
• Operating Temperature: -40°C to +70°C
• Mating Cycles: ≥500
• Tightening Torque: 3Nm
• Pollution Degree: 3

Construction & Materials

• Contact Material: Copper alloy
• Mating Side Plating: Gold over nickel
• Termination Side Plating: Tin over nickel
• Housing Material: Metal construction
• Protection Rating: IP65, IP67 (IEC 60529)
• Stripping Length: 10mm conductors, 44mm cable jacket

Applications

• AIDA standard compliant industrial installations
• Construction industry power distribution
• Industrial automation power connections
• Field-assemblable power coupling applications
• Equipment requiring secure PushPull connections
• Applications requiring IP65/IP67 protection

Installation & Features

• Tool-free field assembly capability
• Intuitive PushPull locking mechanism
• Panel feed-through design
• Includes cable gland and head cap screw M3x8
• Spring clamp termination for reliable connections

Compliance & Standards

• AIDA compliant for construction industry applications
• IEC 60529 protection rating
• Pollution degree 3 rating for industrial environments
• ≥500 mating cycles for reliable long-term use
