Harting Pin Han-snap Coding System, guiding, male, M3

Product Overview

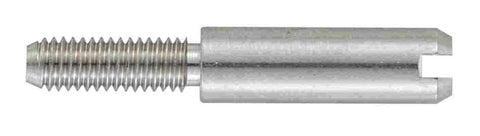

The Coding System Guiding Pin Han-Snap (SKU: 09330009956) is a specialized coding accessory designed specifically for Han-Snap® connector systems. This male guide pin provides mechanical keying for swiveling contact insert holders, ensuring proper mating orientation and preventing incorrect connections in quick-lock industrial connector applications. Part of the Han-Snap® series, this precision component enables error-free connections in demanding industrial environments.

Key Features:

• Han-Snap® Specific Design: Exclusively engineered for Han-Snap® connector systems
• Male Guide Pin Configuration: Precision-machined for accurate positioning
• Swiveling Insert Compatibility: Only for use with swiveling contact insert holders
• Quick-Lock System: Designed for Han-Snap® rapid connection technology
• Mechanical Keying: Prevents incorrect connector coupling
• Industrial Grade: Robust construction for reliable performance
• German Engineering: Manufactured in Germany to highest quality standards

Technical Specifications:

• Article Number: 09 33 000 9956
• Category: Accessories
• Series: Han-Snap®
• Type of Accessory: Coding
• Configuration: Male guide pin
• Application: Swiveling contact insert holders only
• Gender: Male
• Country of Origin: Germany (DE)
• Customs Tariff Number: 85389099
• Weight: 0.002 kg
• RoHS Compliance: Yes

Applications:

Essential for Han-Snap® quick-lock connector applications requiring foolproof mating and rapid connection/disconnection. Ideal for industrial automation systems with frequent connection changes, mobile equipment interfaces, modular machinery connections, temporary installations, maintenance-accessible equipment, and any Han-Snap® application where preventing misconnection with swiveling inserts is critical for operational efficiency and safety.

Compatibility:

• Series Compatibility: Exclusively for Han-Snap® connector systems
• Insert Type: Only compatible with swiveling contact insert holders
• Connector Systems: Works within Han-Snap® quick-lock framework
• Mating Component: Pairs with corresponding female guide bushing (09330009957)
• Application Restriction: Not suitable for fixed insert mountings
• System Integration: Part of complete Han-Snap® coding solution
• Quick-Lock Feature: Maintains Han-Snap® rapid connection capability

Installation & Tools:

• Installation Method: Direct insertion into designated coding positions
• Insert Requirement: Must be used with swiveling contact insert holders
• Positioning: Ensures proper angular alignment in quick-lock systems
• Mechanical Keying: Provides physical prevention of incorrect mating
• Quick-Lock Compatibility: Maintains rapid connection/disconnection feature
• Quality Assurance: Prevents connection errors in modular installations
• Professional Installation: Designed for industrial assembly applications
• Maintenance: Compatible with Han-Snap® service-friendly design
