Harting Han Panel 2 levers, 16B base, IP67

Product Overview

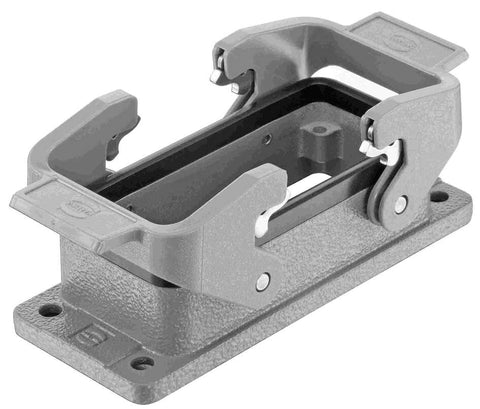

The Han 16B Base Panel 2 Levers IP67 (SKU: 09300161301) is a high-protection base housing designed for panel mounting applications requiring enhanced environmental sealing. Features dual locking lever mechanism and IP67 protection rating for demanding outdoor and industrial environments.

Key Features:

• IP67 Protection: Enhanced environmental sealing against dust and water immersion
• Panel Mounting: Secure mounting design for through-panel installations
• Dual Locking Levers: Two-lever locking mechanism for enhanced connection security
• Size 16B: High-capacity housing for complex connectivity requirements
• Enhanced Sealing: Superior protection for harsh environmental conditions
• Industrial Grade: Built for demanding industrial and outdoor applications

Technical Specifications:

• Article Number: 09 30 016 1301
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Base housing, panel mount
• Protection Rating: IP67 (IEC 60529)
• Locking: Dual locking levers
• Material: Industrial-grade construction with enhanced sealing

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating (locking levers)
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• CSA Certified: CSA-C22.2 No. 182.3 ECBT8.E235076
• Environmental Protection: IP67 rated for dust and water immersion

Applications: Essential for outdoor installations, marine environments, and industrial applications where superior environmental protection is critical. The IP67 rating makes it suitable for wash-down areas, food processing, and harsh industrial environments with exposure to moisture and contaminants.

Compatibility:

• Compatible with Han® B series size 16B inserts and mating connectors
• Designed for panel mounting applications requiring IP67 protection
• Enhanced sealing system maintains protection in demanding environments
• Requires appropriate Han B series inserts (sold separately)

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
