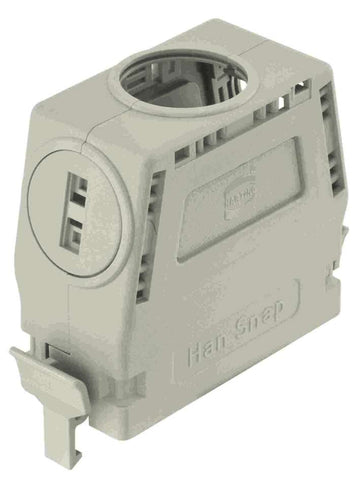

Harting Han-snap Power connecting housing, heavy duty, size 16B

Product Overview

The Han-Snap Plastic Housing Size 16B is an innovative connector housing solution designed for use within protected switch rooms and switch cabinets. This housing permits the installation of connectors in enclosed areas while providing a practical, space-saving solution for industrial connectivity applications. The housing features a top-entry configuration with integrated strain relief capability using cable ties, enabling quick and reliable connector mounting.

Key Features

• Compatible with all inserts of housing size 16B series Han B
• Space-saving design with practical and easy handling
• Quick-release snap mechanism for fast and secure connector locking
• Integrated strain relief provision via cable tie attachment
• Two blanking pieces included for customization
• Slots for identification strips (HARTING label 7x20 or SIEMENS label 9x20)
• Designed for frequent activation with durability up to several thousand cycles

Technical Specifications

• Housing Material: Polycarbonate (PC)
• Housing Color: Pebble grey RAL 7032
• Temperature Range: -40°C to +125°C
• Protection Class: IP20
• Flammability Rating: UL 94 V-0
• Connector Type: Hood configuration
• Entry Type: Top entry with cable tie strain relief
• Dimensions: 112mm x 84.5mm x 43mm (as per technical drawing)
• Cable Diameter: Ø34mm maximum

Applications

Ideal for connectors within closed electrical workshops, including:

• Control cabinets and distributor boxes
• Industrial machinery and equipment
• Rail mounting applications
• Panel mounting configurations
• Factory automation systems
• Protected switch room installations

Compatibility

The Han-Snap® system is compatible with all serial contact inserts and connection distributors of the Han B series including:

• Han D® (40 and 64-pin configurations)
• Han DD®
• Han E® and Han® EE series
• Han® ES and Han Hv E®
• Han® HsB
• All standard Size B inserts

Installation Benefits

• Tool-free snap-in mounting reduces installation time
• Prefabrication capability for Han connectors
• Easy coupling and decoupling for maintenance
• Reduction of material and installation costs
• Stable and reliable locking mechanism
• Customizable identification with label strips

Environmental Compliance

• RoHS compliant
• ELV status compliant
• China RoHS: Grade e
• REACH Annex XVII substances: Not contained
• REACH Annex XIV substances: Not contained
• REACH SVHC substances: Contains Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
• ECHA SCIP Number: 60b1a572-bb3f-476f-9307-b7d1688bd90c
• Meets industrial connector safety standards per IEC 61984
