Harting Han B Base, side entry, 2x Pg 36, 48B

Product Overview

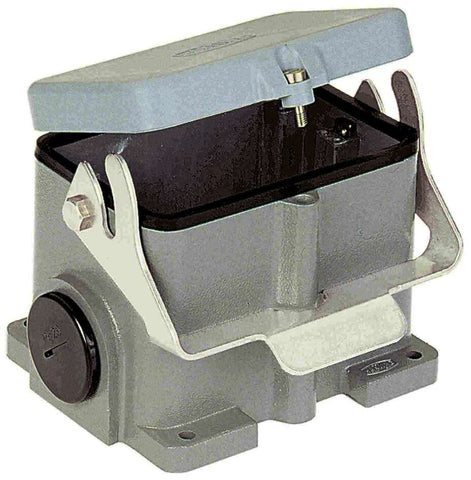

The Han B Base SM HC plastic cover 2 x Pg36 (SKU: 09300480296) is a specialized high-construction surface mount base housing with integrated plastic cover designed for heavy-duty cable management applications. Features dual PG 36 cable entries for the largest diameter cables and provides robust connectivity solutions for demanding industrial environments requiring maximum cable capacity.

Key Features:

• Surface Mount (SM): Direct mounting design for versatile installation options
• High Construction (HC): Enhanced height for superior cable management and bend radius
• Integrated Plastic Cover: Built-in protective cover for enhanced environmental protection
• Dual PG 36 Entries: Two extra-large diameter PG 36 cable entries for heavy-duty applications
• Industrial Grade: Designed for demanding industrial cable management applications
• Specialized Configuration: Purpose-built for maximum cable entry capacity

Technical Specifications:

• Article Number: 09 30 048 0296
• Category: Hoods/Housings
• Series: Han® B
• Type: Base housing, surface mount with plastic cover
• Construction: High construction (HC)
• Mounting Type: Surface mount (SM)
• Cable Entries: 2x PG 36
• Cover Material: Plastic (integrated)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: Suitable for demanding industrial applications

Applications: Essential for heavy-duty industrial applications requiring maximum cable entry capacity with dual extra-large diameter cables. Ideal for power distribution systems, large-scale automation equipment, and industrial installations where multiple large-diameter cables need secure routing and environmental protection.

Compatibility:

• Compatible with Han® B series inserts and mating connectors
• Dual PG 36 entries accommodate the largest standard cable glands
• High construction provides maximum cable bend radius for large cables
• Surface mount design offers versatile installation flexibility
• Integrated plastic cover provides enhanced environmental protection

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
