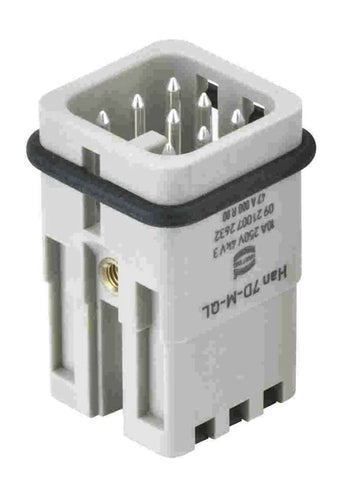

Han 7D-M Quick Lock 1,5mm²

Product Overview

The Han 7D-M Quick Lock 1,5mm² is a male connector insert from HARTING's Han D® series, featuring innovative Han-Quick Lock® termination technology. This 7-contact insert is designed for efficient wire termination without requiring special tools, making it ideal for applications where quick and reliable connections are essential.

Key Specifications

• Article Number: 09 21 007 2632
• Series: Han D®
• Category: Inserts
• Gender: Male insert
• Number of Contacts: 7 contacts + PE (7 + PE)
• Size: 3A
• Current Rating: 10A
• Voltage Rating: 250V (600V acc. to UL/CSA)
• Conductor Cross-Section: 0.25 to 1.5 mm²
• Termination Method: Han-Quick Lock® termination

Technical Features

• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy
• Contact Plating: Silver plated
• Seal Material: NBR
• Operating Temperature: -40°C to +125°C
• Mechanical Life: ≥ 500 mating cycles

Electrical Characteristics

• Rated Impulse Voltage: 4 kV
• Pollution Degree: 3
• Insulation Resistance: >10¹⁰ Ω
• Contact Resistance: ≤ 3 mΩ
• Stripping Length: 10 mm
• UL Rating: 600V acc. to UL
• CSA Rating: 600V acc. to CSA

Han-Quick Lock® Technology

• Tool-Free Termination: No special tools required for wire connection
• Reduced Wiring Time: Innovative termination system speeds installation
• Reliable Connection: Secure wire retention and excellent electrical contact
• Wire Compatibility: Designed for stranded wire according to IEC 60228 Class 5

Applications & Usage This insert is ideal for industrial applications requiring reliable power and signal transmission with quick installation capabilities. The Han-Quick Lock® system significantly reduces wiring time while maintaining high connection reliability. Compatible with thermoplastic hoods and housings in the Han D series.

Compatibility

• Housing Requirement: Only for thermoplastic hoods/housings
• Series Compatibility: Han D® series hoods and housings
• Wire Type: Stranded wire according to IEC 60228 Class 5
• Size Classification: 3A housing size

Certifications & Compliance

• Material Flammability: UL 94 V-0 class
• UL Listed: 600V rating
• CSA Certified: 600V rating
• RoHS Compliant: With exemptions
• Temperature Rating: -40°C to +125°C operating range
