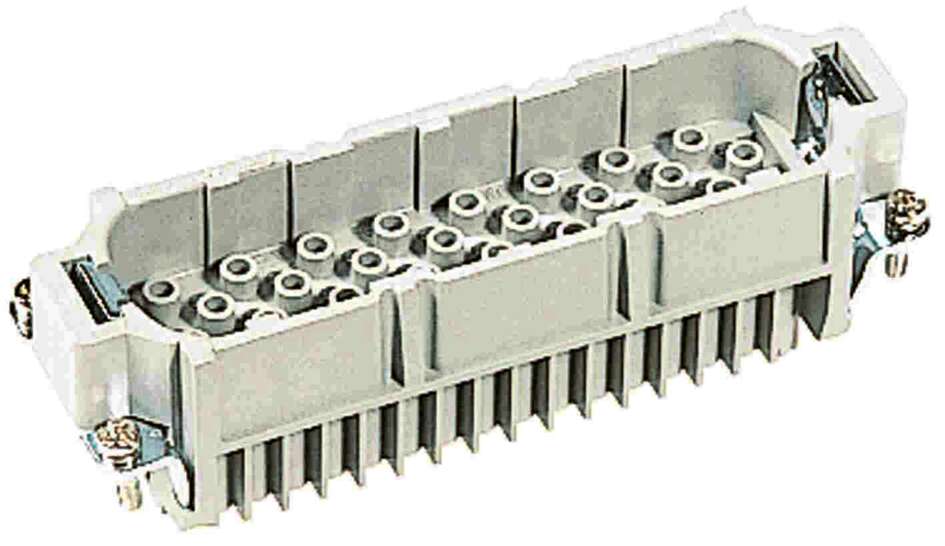

Harting Han 64D-HMC-M-c Insert, male, 64-pin

Product Overview

The Han 64D-HMC-M-c is a premium male connector insert from HARTING's Han D® HMC series, specifically engineered for high mating cycle applications. This 64-position crimp insert combines maximum connectivity density with exceptional durability, designed to maintain reliable performance through over 10,000 mating cycles.

Key Specifications

• Article Number: 09 21 264 3001
• Series: Han D® HMC (High Mating Cycles)
• Gender: Male insert
• Number of Positions: 64 positions
• Current Rating: 10A per contact
• Voltage Rating: 250V (600V acc. to UL/CSA)
• Conductor Cross-Section: 0.14 to 2.5 mm²
• Termination Method: Crimp termination
• Operating Temperature: -40°C to +125°C

High Mating Cycle Technology

• Mating Cycles: ≥10,000 cycles with other HMC components
• Special HMC Contacts: Gold-plated contacts with constant spring force
• Enhanced Durability: Designed to meet EN 61984 requirements after 10,000 cycles
• Professional Grade: Ideal for testing platforms and automated systems
• Contact System: Separate crimp contacts (ordered separately)

Technical Features

• Contact Density: Maximum 64-position configuration
• Housing Compatibility: Han D® HMC series hoods and housings
• Professional Installation: Requires crimp tool for proper termination
• Modular Design: Compatible with Han-Modular® hinged frame systems

Applications & Usage Perfect for demanding industrial applications requiring frequent connect/disconnect cycles such as automated testing equipment, production line interfaces, and robotic systems. The HMC technology ensures reliable operation in applications where standard connectors would fail due to wear.

Certifications & Compliance

• Material Flammability: UL 94 V-0 class
• UL Listed: 600V rating
• CSA Certified: CSA-C22.2 No. 182.3 ECBT8.E235076
