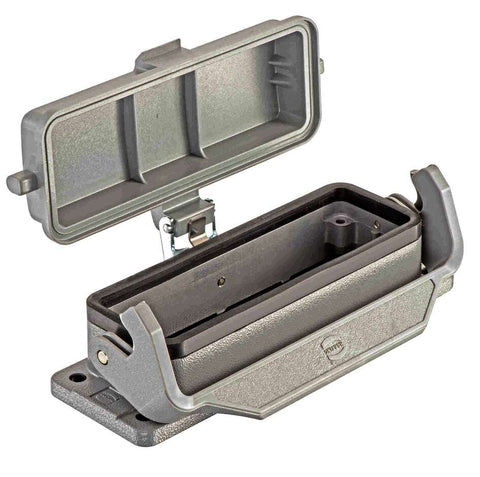

Harting Han 24B Single locking lever, mounted housing Part number 09300241308

Product Overview

The Han 24B IP67 housing-SL-C (SKU: 09300241308) is a specialized bulkhead mounted housing with thermoplastic cover designed for maximum capacity applications requiring enhanced environmental protection. Features single locking lever mechanism and IP67 protection rating with low construction design for size 24B applications in demanding environmental conditions.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for highest density applications
• IP67 Protection: Enhanced environmental sealing against dust and water immersion
• Low Construction: Compact profile with thermoplastic cover design
• Single Locking Lever: Simplified operation with polycarbonate and stainless steel components
• Bulkhead Mounting: Through-panel installation for secure mounting
• NBR Sealing: High-performance nitrile rubber seals for superior environmental protection

Technical Specifications:

• Article Number: 09 30 024 1308
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Bulkhead mounted housing with thermoplastic cover
• Construction: Low construction (SL-C)
• Locking: Single locking lever
• Materials: Polycarbonate (PC), stainless steel
• Housing Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Protection Rating: IP67

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Environmental Protection: IP67 rated for dust and water immersion
• Industrial Standards: Suitable for harsh environmental applications

Applications: Essential for demanding outdoor installations, marine environments, and industrial applications where maximum connectivity capacity with superior environmental protection is critical. The IP67 rating makes it suitable for wash-down areas, food processing, and extreme industrial environments with exposure to moisture and contaminants.

Compatibility:

• Compatible with Han® B series size 24B inserts and mating connectors
• Works with 23 combinable products, 3 accessories, and 48 insert configurations
• Designed for bulkhead mounting applications requiring IP67 protection
• Thermoplastic cover provides enhanced environmental sealing
• Single lever operation for simplified connection in harsh conditions
