Harting Han B Hood, single locking, side entry, size 16B, Pg29

Product Overview

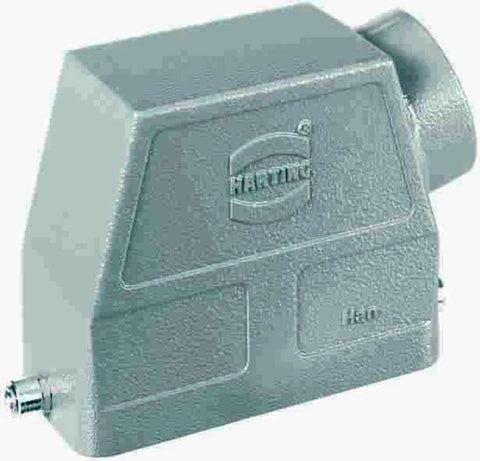

The Han B Hood Side Entry 2 Pegs PG 29 (SKU: 09300160541) is an aluminum die-cast hood designed for side cable entry applications with 2-peg mounting configuration. Features PG 29 cable entry for heavy-duty applications and provides robust connectivity solutions for size 16B industrial connector systems.

Key Features:

• Side Entry Configuration: Cable entry from the side for flexible lateral routing
• 2-Peg Mounting: Secure mechanical attachment with dual peg connectors
• PG 29 Cable Entry: Large diameter PG 29 thread for heavy-duty cable glands
• Size 16B: High-capacity housing for complex connectivity requirements
• Metal Construction: Durable aluminum die-cast housing
• Han-Modular Compatible: Supports modular insert configurations

Technical Specifications:

• Article Number: 09 30 016 0541
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Hood, side entry
• Mounting: 2 pegs
• Cable Entry: 1x PG 29
• Material: Aluminum die-cast
• Alternative: Metric thread version available (19300160547)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Protection Rating: Up to IP69K (depending on configuration)
• Mating Cycles: >3000 (Han-Modular system capability)

Applications: Ideal for heavy-duty industrial applications requiring side cable entry with large diameter cables. Suitable for high-power systems, manufacturing equipment, and automation applications where robust connectivity and flexible cable routing are essential.

Compatibility:

• Compatible with Han® B series base housings and inserts
• Supports Han-Modular system with 1-12 module combinations
• Works with currents from 5A to 200A and voltages from 50V to 5000V
• Accommodates electrical, optical, and pneumatic connections in one assembly

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
