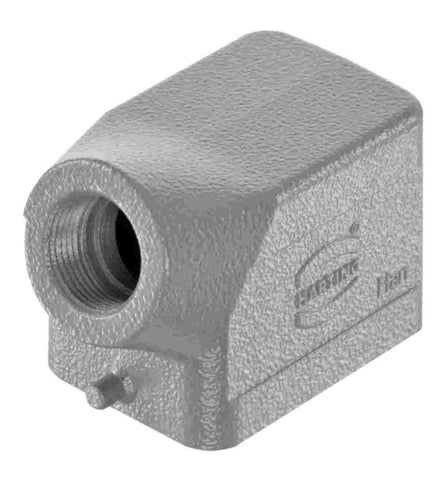

Harting Han B Hood, single locking, side entry, size 6B, Pg 16

Product Overview

The Han B Hood Side Entry LC 2 Pegs PG 16 is a low construction cable-side housing from HARTING's Han® B series, designed for applications requiring compact side cable entry. This single-lever hood features a PG 16 cable gland for reliable cable management and environmental sealing in space-constrained installations.

Key Specifications

• Article Number: 09 30 006 1541
• Series: Han® B
• Category: Hoods/Housings
• Type: Hood (cable-side housing)
• Size: 6B
• Construction: Low construction (LC) design
• Locking Type: Single locking lever
• Cable Entry: Side entry with 1x PG 16

Technical Features

• Material: Aluminum die-cast construction
• Surface: Powder-coated finish
• Color: RAL 7037 (dust grey)
• Cable Entry: Side-mounted PG 16 cable gland
• Locking System: Single lever mechanism
• Operating Temperature: -40°C to +125°C
• Compact Profile: Low construction for space-efficient installation

Side Entry Design

• Space Efficient: Side cable entry optimizes space utilization
• Low Construction: Compact LC profile for tight installations
• PG 16 Gland: Integrated cable gland for reliable sealing
• Single Lever: Easy-to-operate locking mechanism
• Flexible Mounting: Side entry accommodates various cable routing requirements

Environmental & Safety Ratings

• IP Protection: IP65, IP66, IP67 (when properly sealed)
• UL Type Rating: UL 50/UL 50E compliant
• Temperature Range: -40°C to +125°C operating temperature
• Industrial Grade: Suitable for demanding industrial environments

Applications & Usage Ideal for applications where space constraints require side cable entry and low profile design. Perfect for installations with limited vertical clearance or where cables need to be routed from the side. Commonly used in control cabinets, machinery installations, and equipment where compact connectivity is essential.

Compatibility

• Series Compatibility: Han® B series inserts and accessories
• Insert Accommodation: Compatible with 6B size inserts
• Cable Management: PG 16 cable gland included
• Installation: Low construction design for space-constrained applications

Certifications & Compliance

• UL Listed: UL 50/UL 50E certified
• IEC Standards: Connector according to IEC 61984

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD Models & Technical Data
