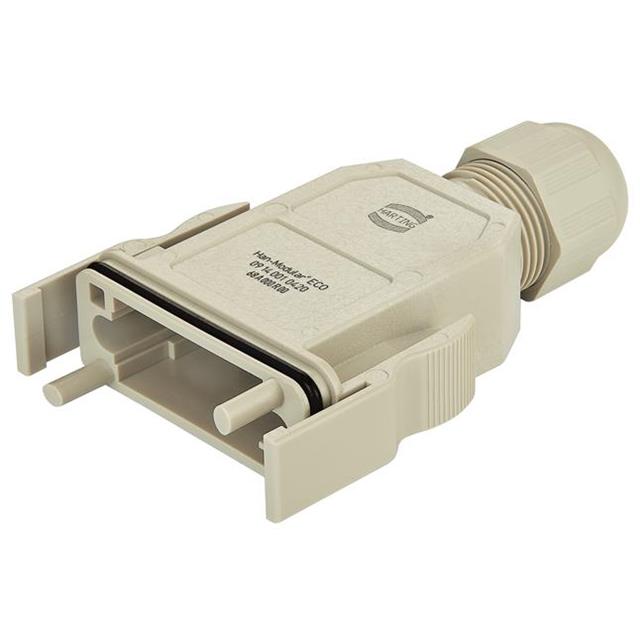

Harting Han-Modular Hood with integrated cable gland, Top entry Part number 09140010420

This hood forms part of the Han-Modular connector series and is fitted with an integrated cable gland for top entry cable routing. The housing and grip are made of PC with an NBR seal, and the design accommodates cable diameters from 6mm to 13mm, with the cable gland tightened to 3 Nm. It is used in industrial connector assemblies for panels and machine builds requiring a top-entry cable termination, complying with IEC 60664-1 and IEC 61984 and carrying a V-0 flammability rating.

Key specifications

• Flammability: V-0
