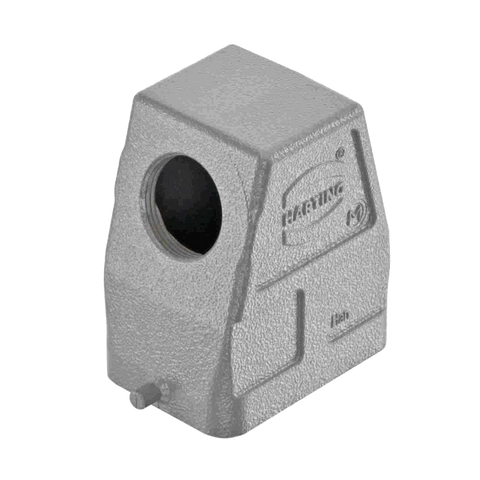

Harting Han B Hood, single locking, side entry, M25, size 6B Part number 19300060546

Product Overview

The Han B Hood Side Entry HC 2 Pegs M25 is a high construction connector hood designed for demanding industrial applications requiring enhanced internal space with lateral cable routing. Features aluminum die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han® B series with size 6B configuration, specifically engineered with high construction (HC) design to provide increased internal volume and superior cable management capabilities while maintaining side entry M25 cable gland access.

Key Features

• High construction design for enhanced internal capacity
• Side entry configuration for lateral cable routing
• Single locking lever for secure engagement
• Size 6B with M25 side cable entry
• Dual peg mounting system for enhanced stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Enhanced internal volume for complex cable assemblies

Technical Specifications

• Housing Size: 6B
• Construction: High construction (HC)
• Cable Entry: Side entry, 1x M25
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han® B
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• High construction provides enhanced internal space for larger assemblies
• Side entry design optimizes lateral cable routing
• Dual peg system ensures accurate positioning and mounting stability
• M25 cable gland accommodates enhanced cable diameter capacity
• Single lever provides secure engagement with increased internal volume

Applications

• Industrial machinery requiring enhanced cable capacity with side cable routing
• Control systems with complex wiring requiring additional internal space and lateral access
• Automation equipment needing side cable management with increased capacity
• Manufacturing systems where side entry with enhanced volume is essential
• Applications requiring reliable connections with superior cable management from the side
• Equipment installations where both side entry and enhanced capacity are needed

Compatibility

• Compatible with Han 6B series inserts
• Works with various Han® B insert configurations
• Part of comprehensive Han® B connector system
• Enhanced mounting stability with dual peg design
• Suitable for applications requiring high construction benefits
• Accommodates larger internal capacity than standard construction hoods

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
