Harting Hood, Double locking, side entry, PG16, size 10B

Product Overview

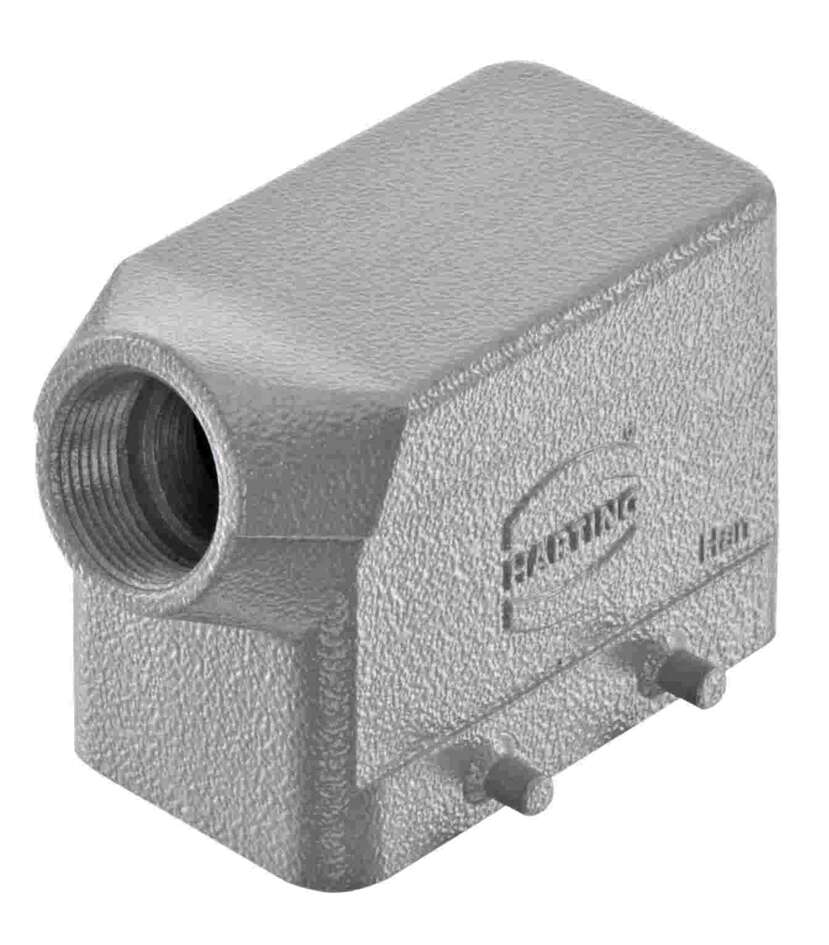

The Han B Hood Side Entry LC 4 Pegs PG 16 (SKU: 09300101521) is a low-construction aluminum die-cast hood designed for side cable entry applications. This 4-peg mounting hood features a PG 16 cable entry and double locking lever mechanism, providing secure and reliable connections for industrial connector systems in the Han® B series.

Key Features:

• Low Construction (LC): Space-saving design for height-restricted applications
• Side Entry Configuration: Cable entry from the side for flexible routing
• 4-Peg Mounting: Secure mechanical attachment with four mounting pegs
• PG 16 Cable Entry: Standard PG 16 thread for cable gland compatibility
• Double Locking Lever: Enhanced connection security and reliability
• Die-Cast Aluminum: Robust construction for industrial environments
• Powder Coating: RAL 7037 (dust grey) finish for corrosion resistance

Technical Specifications:

• Article Number: 09 30 010 1521
• Category: Hoods/Housings
• Series: Han® B
• Size: 10 B
• Type: Hood, side entry
• Construction: Low construction (LC)
• Mounting: 4 pegs
• Cable Entry: 1x PG 16
• Locking System: Double locking lever
• Material: Aluminum die-cast
• Finish: Powder-coated, RAL 7037 (dust grey)

Design Features:

• Side Entry Design: Optimized for applications requiring lateral cable routing
• 4-Peg Mounting System: Provides secure mechanical connection to mating base
• Low Profile: LC construction minimizes overall connector height
• Aluminum Construction: Lightweight yet durable die-cast housing
• Standard Threading: PG 16 entry accepts standard cable glands and strain reliefs

Applications: Ideal for industrial machinery, control panels, and automation equipment where side cable entry is preferred or required. The low construction design makes it suitable for space-constrained installations while the 4-peg mounting ensures reliable mechanical connection.

Compatibility:

• Compatible with Han® B series base housings and inserts
• Works with 29 combinable products and accessories
• Supports 26 different insert configurations
• Requires appropriate Han B series inserts (sold separately)

Installation Notes:

• Designed for side entry cable routing
• Requires mating Han B base with compatible peg arrangement
• PG 16 cable entry accommodates standard cable management components
• Double locking lever provides secure connection and easy disconnection
• Low construction suitable for applications with height limitations
