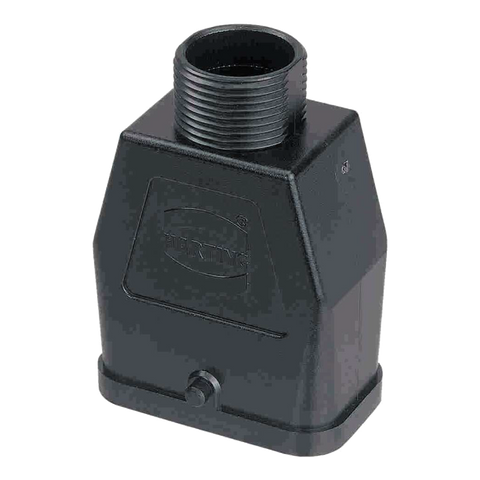

Harting Hood for Han-compact, half cable gland, top entry, M25

Product Overview

The Han Q 8/0-HTE-M25 (article no. 19 12 008 0429) is a compact connector housing from Harting's Han-Compact series. Features polycarbonate construction in jet black (RAL 9005) with single locking lever design, M25 top entry cable connection, and compatibility with Han Q 8/0 inserts for space-efficient industrial automation applications.

Key Features:

• Han Q 8/0 insert compatibility for compact connections
• HTE (Hood Top Entry) design with M25 cable entry
• Polycarbonate (PC) construction in jet black (RAL 9005)
• Single locking lever for easy connection/disconnection
• Top entry configuration for accessible cable management
• Han-Compact series for space-efficient installations
• Half cable gland design for versatile mounting options
• Professional appearance with black housing finish

Applications:

Industrial automation systems requiring compact connections, control panels with space constraints, manufacturing equipment, process control installations, machinery applications, compact connector assemblies, automation control boxes, field installations requiring reliable connections.

Technical Specifications:

• Category: Hoods/Housings
• Series: Han-Compact
• Insert Compatibility: Han Q 8/0
• Housing Type: HTE (Hood Top Entry)
• Cable Entry: M25 top entry
• Material: Polycarbonate (PC)
• Color: RAL 9005 (jet black)
• Locking Mechanism: Single locking lever
• Size: Han-Compact series
• Configuration: Half cable gland design
• Entry Orientation: Top entry (1x M25)

Design Features

The HTE (Hood Top Entry) design provides convenient top-accessible cable entry for installations where space is limited or cable routing requires overhead access. The single locking lever mechanism ensures secure connection while allowing for quick and easy mating and unmating operations in field conditions.

System Benefits:

• Compact Han Q 8/0 insert design saves installation space
• Top entry cable access simplifies installation in confined spaces
• Single locking lever reduces connection/disconnection time
• Polycarbonate construction provides durability and chemical resistance
• Jet black finish provides professional appearance
• Compatible with Han-Compact series ecosystem

Standards:

• Industrial connector housing standards
• Polycarbonate material specifications
• Han-Compact series compatibility standards
• Locking mechanism performance standards

Compliance:

• Harting Han-Compact series specifications
• Industrial automation connector standards
• Polycarbonate material regulations
• Mechanical durability requirements
