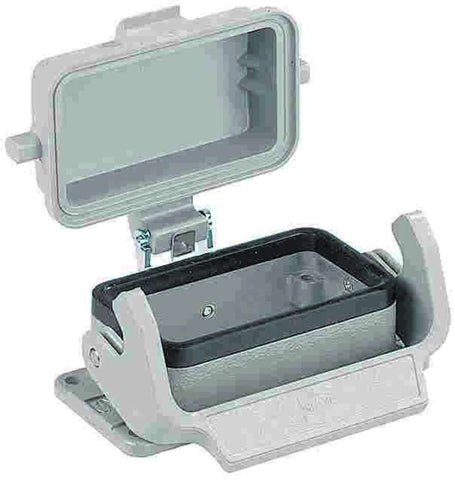

Harting Bulkhead housing with thermo-plastic cover, Size 16B

Product Overview

The Han 16B-HBM Single Lever Cover (SKU: 09300160306) is a bulkhead mounted housing designed for industrial connector applications. Features single locking lever mechanism with integrated cover and provides robust connectivity solutions for size 16B applications in demanding industrial environments.

Key Features:

• Single Locking Lever: Simplified operation with single-lever locking mechanism
• Bulkhead Mounting (HBM): Panel-mount design for through-wall installations
• Integrated Cover: Built-in protective cover for enhanced environmental protection
• Size 16B: Large capacity housing for high-density applications
• Die-Cast Construction: Durable die-cast light alloy construction
• Han-Easy Lock: Advanced locking technology for secure connections

Technical Specifications:

• Article Number: 09 30 016 0306
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Bulkhead housing with single lever and integrated cover
• Material: Die-cast light alloy
• Mounting Type: Panel mount (bulkhead)
• Locking: Single locking lever with Han-Easy Lock
• Color: RAL 7037 (dust grey)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: Suitable for demanding automotive and mechanical engineering applications

Applications: Ideal for industrial machinery, automation equipment, and control panels where reliable panel-mounted connections with integrated protection are required. The single lever design simplifies operation while the integrated cover provides enhanced environmental protection.

Compatibility: Compatible with Han® B series size 16B inserts and standard terminal block connectors. Designed for excellent mechanical and electrical protection in demanding industrial environments including process and regulation control applications.

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
