Harting Surface housing, Single locking, side entry, 2x M20

Product Overview

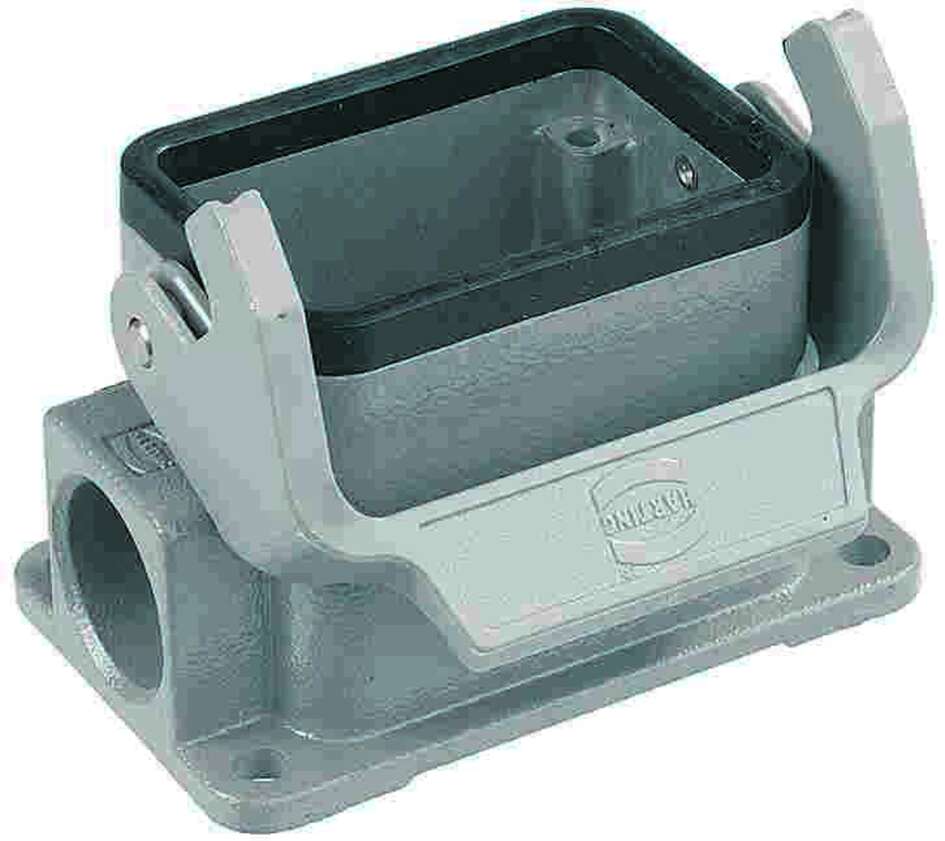

The Han B Base Surface LC 1 Lever 2xM20 is a low construction connector base designed for industrial applications requiring dual cable routing with minimal height profile. Features aluminum die-cast construction with single locking lever mechanism and dual M20 cable glands for enhanced connectivity options. Part of the Han B® series with size 6B configuration, specifically engineered with low construction (LC) design for installations with limited vertical clearance while providing dual side entry M20 cable management for increased cable capacity and routing flexibility.

Key Features

• Low construction design for minimal height profile
• Surface mounting configuration for secure installation
• Single locking lever with Han-Easy Lock® system
• Size 6B with dual M20 side cable entries
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Dual cable gland system for enhanced connectivity
• NBR sealing technology for environmental protection

Technical Specifications

• Housing Size: 6B
• Construction: Low construction (LC)
• Cable Entry: Side entry, 2 x M20
• Mounting: Surface mounting with side entry position
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han® B
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E
• Seal Material: NBR (Nitrile Butadiene Rubber)

Installation Details

• Low construction minimizes vertical space requirements
• Surface mounting design for secure panel installation
• Dual M20 cable glands provide enhanced cable management flexibility
• Single lever provides secure engagement with reduced height profile
• Side entry configuration optimizes cable routing in confined spaces
• Easy installation with standard mounting hardware

Applications

• Industrial installations requiring dual cable connections with height restrictions
• Control systems needing multiple cable entries with minimal clearance
• Automation equipment in confined vertical spaces requiring dual connectivity
• Manufacturing systems where low profile and dual cable management are essential
• Applications requiring multiple cable routing with space constraints
• Equipment installations where both dual entry and low height are critical
• Process control systems requiring redundant cable connections

Compatibility

• Compatible with Han 6B series inserts
• Works with various Han B® insert configurations
• Part of comprehensive Han B® connector system
• Suitable for applications requiring dual cable management
• Enhanced connectivity with dual M20 cable gland system

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating
• Sealing: NBR seal technology for harsh environments
• Durability: ≥500 mating cycles for long-term reliability

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
• UL/CSA Approvals: UL 1977, CSA-C22.2 No. 182.3
• CE Marking: Yes
