Harting Hinged frame for 4 modules, A - D, size 16B

Product Overview

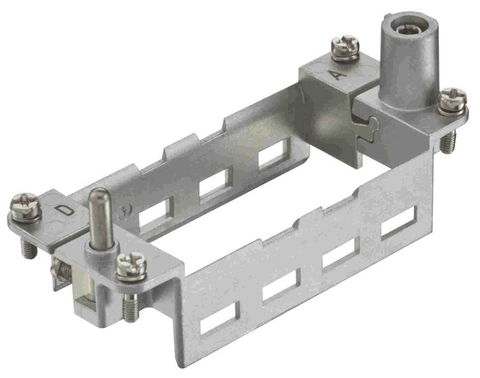

The Han Modular frame 16 hood 4 module A-D is a metal docking frame designed for the HARTING Han-Modular® connector system. This hinged frame accommodates up to 4 modules in positions A through D and is engineered for use with standard Han 16 hoods, providing flexible modular connectivity solutions for industrial applications with secure module positioning and reliable mechanical connection.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Metal modular frame
• Configuration: 4 module positions (A-D)
• Hood Size: Han 16
• Frame Type: Hinged design
• Module Capacity: 4 modules maximum
• Material: Metal construction
• Mounting: Hood mounting configuration
• Compatibility: Standard Han hoods and housings
• Design: Hinged frame for easy module access

Technical Specifications

This Han Modular hinged frame is designed for the harshest requirements in industrial environments, providing secure mounting for up to 4 modules in a Han 16 hood configuration. The frame accommodates various Han-Modular inserts to create custom connector solutions for applications ranging from sensitive signals to high power connections. The metal construction ensures durability and reliable mechanical connection while the hinged design allows for easy module installation and maintenance. The frame supports the Han-Modular system's flexibility, enabling integration of signal, power, fiber optic, and compressed air modules within a single connector assembly.

Compliance & Environmental

• Robust metal frame construction
• Industrial-grade durability
• Compatible with Han-Modular® system
• Suitable for protected electrical areas
• Designed for control cabinet and outdoor applications
• Supports modular connector configurations
• Hinged design for maintenance accessibility

Applications

Ideal for industrial control systems, power distribution panels, and machinery requiring modular connectivity solutions. Perfect for applications where multiple connection types (power, signal, data, pneumatic) need to be consolidated into a single connector assembly. Suitable for protected electrical areas including control cabinets and outdoor applications where reliable modular connections are essential. The frame enables custom connector configurations using standard Han-Modular modules, making it perfect for industrial automation, manufacturing equipment, and complex machinery installations.

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• 3D CAD Models & Technical Data
• HARTING eCatalogue
