Harting Hood, Bulkhead, Single locking lever, die cast, 24B, grey

Product Overview

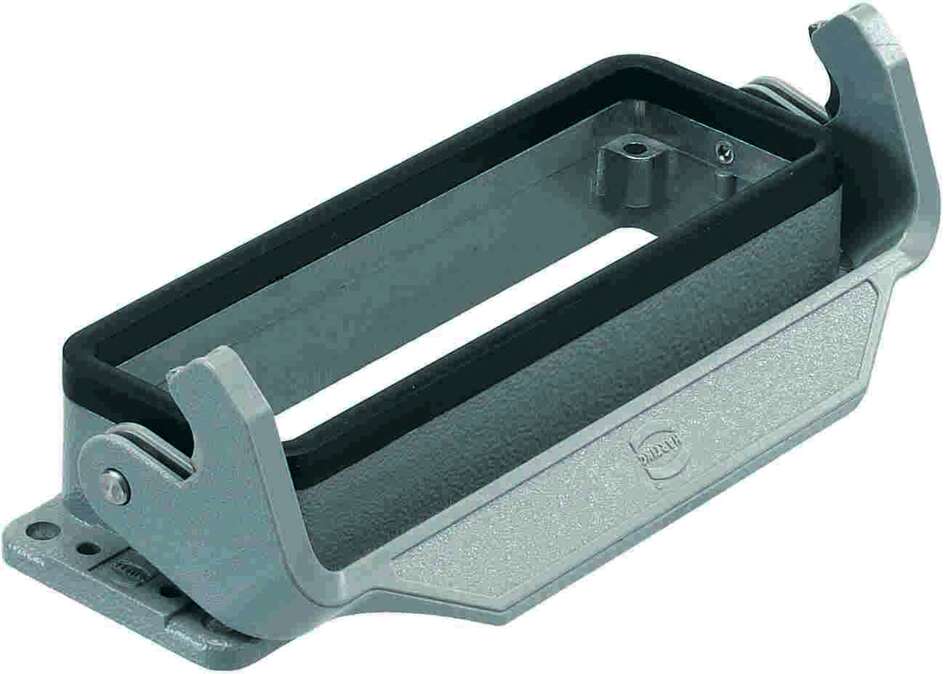

The Han 24B-HMC-agg-LB (SKU: 09302240307) is a specialized aluminum die-cast bulkhead mounting housing designed for high mating cycle applications in demanding industrial environments. Part of the Han® HMC (High Mating Cycles) series, this connector housing delivers exceptional durability with ≥10,000 mating cycles, making it ideal for applications requiring frequent connections and disconnections.

Key Features:

• High Mating Cycles (HMC): Engineered for ≥10,000 mating cycles with other HMC components
• Size 24B: Medium-capacity connectivity for industrial applications
• Bulkhead Mounting: Panel-mount design for through-wall installations
• Single Locking Lever: Han-Easy Lock® mechanism for reliable connection
• Low Construction Profile: Space-efficient design optimized for frequent use
• Aluminum Die-Cast: Robust construction with powder-coated RAL 7037 finish
• Enhanced Durability: Specifically designed for applications requiring frequent mating/unmating

Technical Specifications:

• Article Number: 09 30 224 0307
• Category: Hoods/Housings
• Series: Han® HMC (High Mating Cycles)
• Size: 24B
• Type: Bulkhead mounted housing
• Construction: Low profile
• Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)
• Locking: Single locking lever with Han-Easy Lock® (polycarbonate + stainless steel)
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Net Weight: 110g
• Tightening Torque: 1 Nm for fixing screws M4

Compliance & Certifications:

• Operating Temperature: -40°C to +125°C
• Mating Cycles: ≥10,000 with other HMC components
• Protection Rating: IP65 according to IEC 60529
• UL Ratings: Type 4, 4X, 12 (UL 50/UL 50E)
• Material Flammability: UL 94 V-0 rating (locking levers)
• Standards: IEC 61984 connector standard compliance
• Approvals: DNV GL
• RoHS Compliant: Yes
• ELV Status: Compliant
• China RoHS: e (compliant)

Environmental Compliance:

• REACH Annex XVII substances: Not contained
• REACH ANNEX XIV substances: Not contained
• REACH SVHC substances: Yes (Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate)
• ECHA SCIP number: 60b1a572-bb3f-476f-9307-b7d1688bd90c
• California Proposition 65 substances: Yes (Nickel, Naphthalene)

Fire Protection:

• Railway Standards: EN 45545-2 (2020-08) compliance with Hazard Levels R22 (HL 1-3) and R23 (HL 1-3)

Technical Classifications:

• eCl@ss: 27440202 Shell for industrial connectors
• ETIM: EC000437
• UNSPSC 24.0: 39121466
• European customs tariff number: 85389099
• GTIN: 5713140048478
• Country of Origin: Germany

Applications:

Essential for industrial applications requiring frequent connector mating and unmating cycles. Ideal for automated manufacturing systems, robotics applications, test equipment, production lines, quality control systems, and any application where connectors are regularly engaged and disengaged. Perfect for environments demanding exceptional connector durability and reliability.

Compatibility:

• Compatible with Han® 24B inserts and mating connectors
• Specifically designed for use with other Han® HMC components
• Optimized for high-frequency mating applications
• Should not be mated or unmated under electrical load
• Works with Han 24B hoods and inserts for maximum system flexibility
