Harting Surface housing, Side entry, M25, size 16A

Product Overview

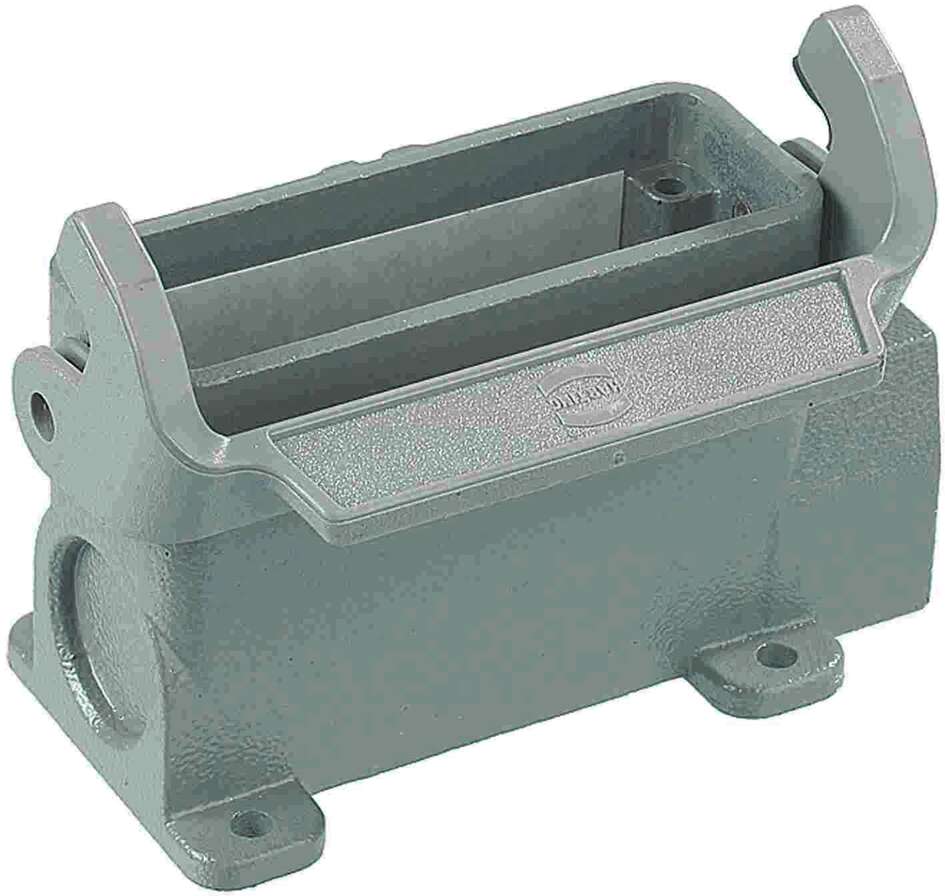

The Han 16A-HSM-HC 1 Lever 1xM25 is a high construction surface mounted housing designed for demanding industrial applications requiring maximum cable capacity and internal space. Features aluminum die-cast construction with single locking lever mechanism and M25 cable entry. Part of the Han A® series with size 16A configuration, specifically engineered as a high construction (HC) housing to provide superior internal volume and enhanced cable management capabilities for larger connector assemblies.

Key Features

• High construction design for maximum internal capacity
• Single locking lever for secure engagement
• Size 16A with M25 cable entry
• Aluminum die-cast construction for superior durability
• Surface mounted configuration for panel installation
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Enhanced internal volume for complex cable assemblies

Technical Specifications

• Housing Size: 16A
• Construction: High construction (HC)
• Mounting: Surface mounted housing (HSM)
• Cable Entry: 1x M25
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han A®
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• High construction provides maximum internal space for large assemblies
• Surface mounted design for secure panel installation
• M25 cable entry accommodates enhanced cable diameter capacity
• Single lever provides secure engagement and easy operation
• Compatible with Han 16A insert configurations

Applications

• Heavy-duty industrial machinery requiring large connector capacity
• Control systems with high cable density and complex wiring requirements
• Automation equipment needing maximum internal space
• Manufacturing systems with multiple large cable assemblies
• Power distribution applications requiring robust connector solutions
• Applications where maximum internal volume and cable capacity are essential

Compatibility

• Compatible with Han 16A series inserts
• Works with various Han A® insert configurations
• Part of comprehensive Han A® connector system
• Suitable for applications requiring enhanced cable capacity
• Compatible with standard Han A® mounting systems

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
