Harting Hinged frame for 6 modules, A - F, size 24B

Product Overview

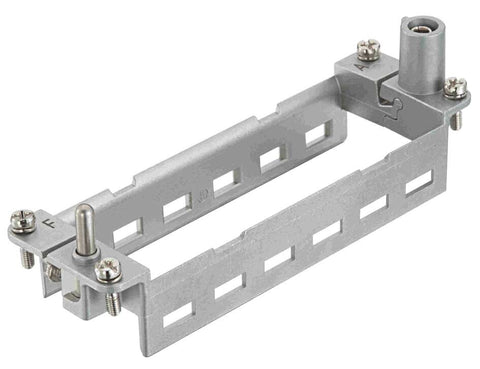

The hinged frame 24B for 6 modules (A..F) is a large-capacity modular docking frame designed for the HARTING Han-Modular® connector system. This hinged frame accommodates up to 6 modules in positions A through F and is engineered for use with Han 24B hoods and housings, providing comprehensive modular connectivity solutions for complex industrial applications requiring multiple connection types in a single assembly.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Hinged frame
• Configuration: 6 module positions (A-F)
• Frame Size: 24B
• Module Capacity: 6 modules maximum
• Compatibility: Han 24B hoods and housings
• Design: Hinged construction for easy access
• PE Connection: Integrated PE contacts
• Conductor Cross-Section PE (Power): 4 - 10 mm²
• Conductor Cross-Section PE (Signal): 1 - 2.5 mm²
• Operating Temperature: -40°C to +125°C

Technical Specifications

This Han-Modular hinged frame 24B is designed to provide users with a very high degree of connectivity and manufacturing flexibility. The frame can combine electrical, optical, and gaseous signal and power connections in one easy assembly, with basic modules snapping into the mounting frame and exchangeable separately anytime. The 24B size accommodates up to 6 modules, making it suitable for complex applications requiring extensive connectivity. The hinged design allows for easy module installation and maintenance while ensuring secure mechanical connection. The frame features integrated PE contacts with conductor cross-sections from 1-2.5 mm² for signal side and 4-10 mm² for power side, providing comprehensive grounding capabilities.

Compliance & Environmental

• Operating temperature: -40°C to +125°C
• Industrial-grade hinged construction
• Compatible with Han-Modular® system
• Suitable for Han 24B connector applications
• Designed for protected electrical areas
• Compatible with standard Han® B hoods and housings
• Supports modular connector configurations
• Integrated PE contact system
• Stripping length: 8-10 mm

Applications

Ideal for complex industrial control systems, power distribution panels, and machinery requiring extensive modular connectivity solutions with up to 6 different connection types. Perfect for applications where multiple connection types (power, signal, data, pneumatic, optical) need to be consolidated into a single large connector assembly. Suitable for industrial automation equipment, manufacturing systems, and complex machinery installations requiring high connectivity density. The 24B size makes it particularly useful for control cabinets, process control systems, and automated production lines where comprehensive connectivity in a single connector is essential for system efficiency and maintenance accessibility.
