Harting Hood for Han-Compact, single locking, angled entry, Pg16

Product Overview

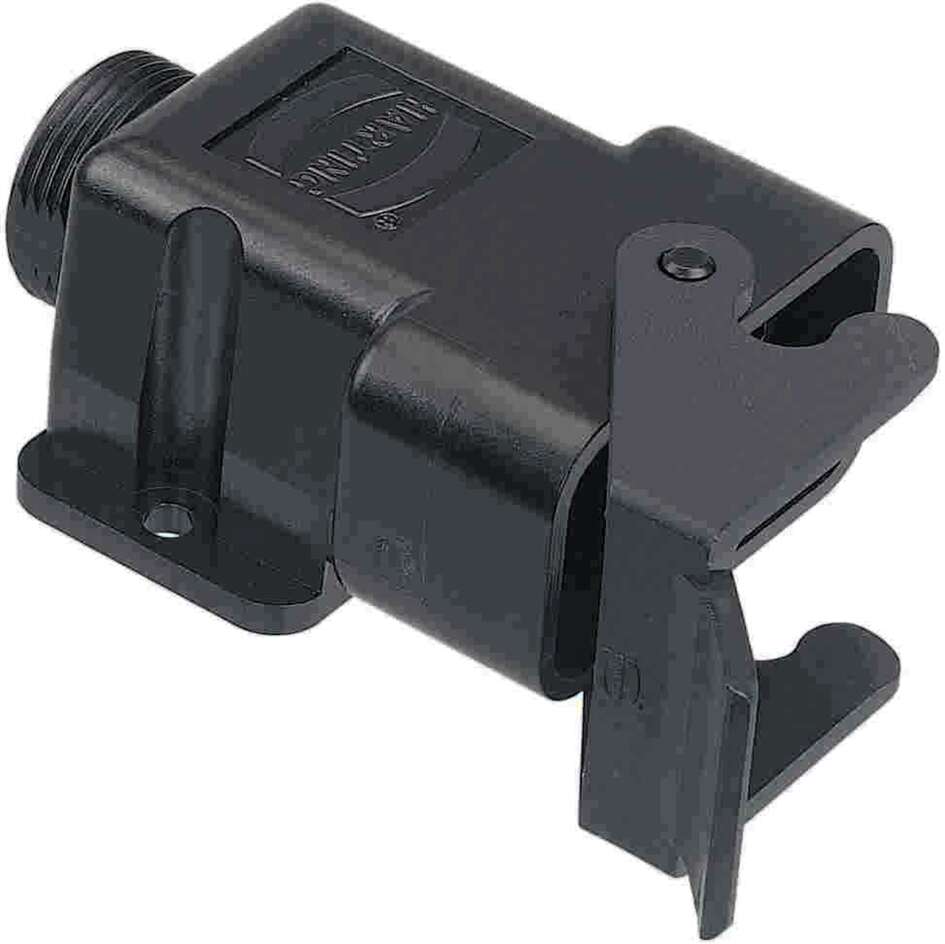

The Han Q 8/0-asw-16 is a high-performance surface mounted housing designed for the HARTING Han-Compact® series with angled cable entry configuration. This housing features PG16 half cable gland compatibility and is engineered for secure wall or panel mounting in industrial applications requiring reliable environmental protection and space-efficient angled cable entry.

Key Features

• Series: Han-Compact®
• Size: 8/0
• Type: Surface mounted housing (asw)
• Cable Entry: Angled entry configuration
• Cable Gland: 1x PG16 (Han-Compact® half cable gland)
• Housing Material: Polycarbonate (PC)
• Color: RAL 9005 (jet black)
• Locking System: Single locking lever
• Lever Material: Polyamide (PA)
• Mounting: Surface mounted for wall/panel installation
• Application: Industrial wall mounting with angled cable entry

Technical Specifications

This surface mounted housing is part of the Han-Compact® series, designed for wall or panel mounting applications where angled cable entry is required. The robust polycarbonate construction with RAL 9005 (jet black) finish provides excellent durability and professional appearance. The angled entry design allows for space-efficient installations in confined areas while maintaining secure cable connections. The single locking lever system, manufactured from polyamide, ensures reliable connection engagement. Compatible with Han-Compact® half cable glands for PG16 cable entry, providing superior environmental sealing and cable strain relief.

Compliance & Environmental

• Industrial-grade polycarbonate construction
• Professional RAL 9005 finish
• Han-Compact® series compatibility
• Polyamide locking lever for durability
• Suitable for harsh industrial environments
• RoHS compliant materials

Applications

Ideal for industrial wall and panel mounting applications where angled cable entry is essential for space optimization. Perfect for control cabinets, machinery interfaces, and equipment installations where direct cable entry is not feasible due to space constraints. The angled entry configuration makes it suitable for tight spaces, corner installations, and applications requiring cable routing parallel to mounting surfaces in automation systems and process control equipment.
