Harting Han RJ45 module, panel feed through, female, single, 1A

Product Overview

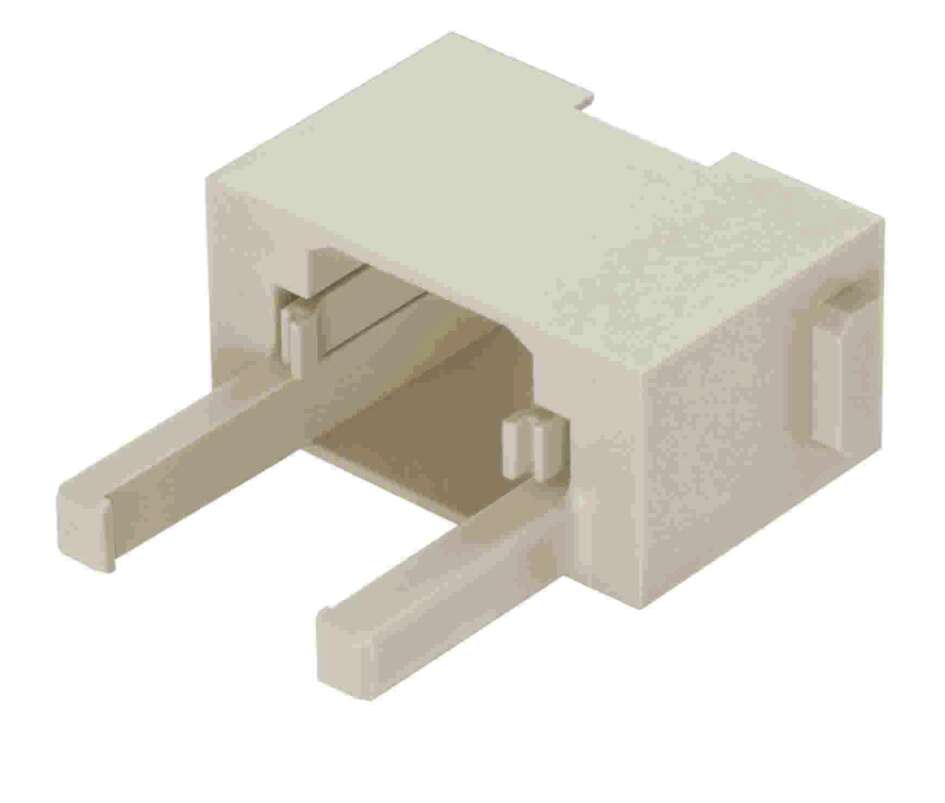

The Han RJ45 module panel feed through, fem. is a female data transmission module designed for the HARTING Han-Modular® connector system. This specialized panel feed-through module enables reliable RJ45 connectivity through panel walls within industrial connector assemblies, providing secure data transmission capabilities in demanding industrial environments. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector.

Key Features

• Series: Han-Modular®
• Category: Data Transmission Module
• Type: Panel Feed Through
• Gender: Female
• Interface: RJ45 connector
• Contacts: 8
• Current Rating: 1 A
• Voltage Rating: 50 V (rated voltage), 30 V (UL rated)
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Operating Temperature: -40°C to +70°C
• Flammability Rating: UL 94 V-0
• Module Size: Single module

Technical Specifications

This female RJ45 panel feed-through module provides reliable data transmission capabilities within the Han-Modular® system. The module features a rated voltage of 50V with 30V UL rating, operating temperature range of -40°C to +70°C, and rated impulse voltage of 0.8 kV with pollution degree 3 classification. The robust polycarbonate construction ensures durability in industrial environments with an insulation resistance greater than 10¹⁰ Ω and mating cycles of ≥500. The panel feed-through design enables secure RJ45 connections through panel walls while maintaining the modular flexibility of the Han-Modular® system. The 8-contact female configuration provides reliable data transmission for industrial networking applications. Note: Insert must be ordered separately for complete assembly.

Compliance & Environmental

• IEC 60664-1 and IEC 61984 specifications
• DNV GL approvals
• RoHS compliant, ELV status compliant
• REACH Annex XVII substances: Not contained
• California Proposition 65 substances: Not contained
• Fire protection on railway vehicles EN 45545-2 (2020-08)
• Industrial-grade polycarbonate construction
• Professional RAL 7032 finish

Applications

Ideal for industrial automation systems, control panels, and machinery requiring reliable RJ45 data connectivity through panel walls. Perfect for applications where Ethernet or data transmission lines need to pass through equipment enclosures while maintaining the robust connectivity standards of the Han-Modular® system. Excellent for process control systems, manufacturing equipment, and industrial networks where panel-mounted female RJ45 connections are essential for data communication. The modular design enables flexible system configurations and easy maintenance in complex industrial installations requiring secure data transmission capabilities through panel interfaces.
