Product Overview

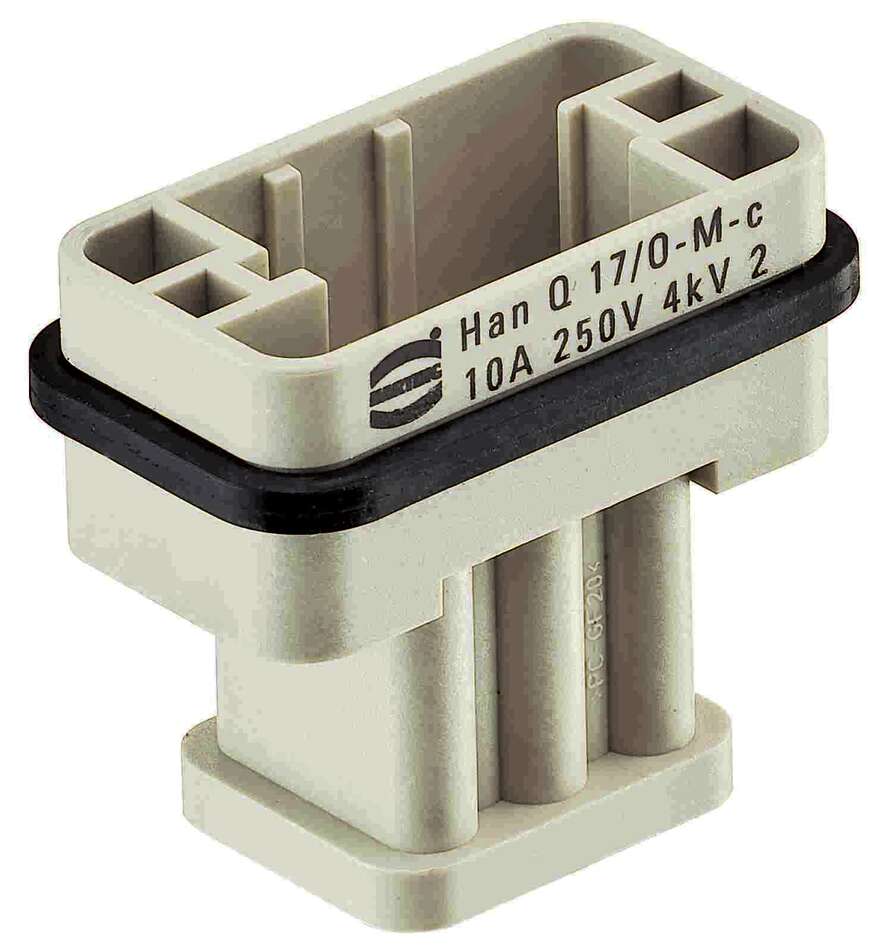

The Han Q 17/0-M-c 10A is a high-performance male connector insert designed for the HARTING Han® Q series with crimp termination. This compact 17-contact insert with protective earth (PE) features crimp contact termination and is optimized for industrial applications requiring reliable electrical connections with maximum contact density and precise control signal capability.
Key Features
Technical Specifications
This male insert is part of the Han® Q series, featuring crimp termination for secure and reliable electrical connections. The insert accommodates conductor cross-sections from 0.14 to 2.5 mm² and is rated for 10A at 250V (UL and CSA). The 17-contact configuration provides exceptional contact density for complex control and automation applications requiring multiple signal paths. The crimp connection method provides superior mechanical retention and electrical performance for long-term reliability. Operating reliably across a wide temperature range from -40°C to +125°C, this insert meets UL 94 V-0 flammability standards and CSA certifications. Compatible with both plastic and metal housings. Note: Crimp contacts must be ordered separately.
Compliance & Environmental
Applications
Ideal for industrial automation, control systems, and instrumentation applications requiring maximum contact density with reliable signal transmission. Perfect for complex control circuits, multi-channel data acquisition systems, advanced process control, and automation applications where 17 signal connections are needed in compact installations. The high contact density makes it excellent for sophisticated control panels, measurement equipment, sensor networks, and industrial systems requiring extensive signal interconnection capabilities.
Download existing graphical data for this product:
Limiting Temperature | -40 ... +125 °C |
Rated Current | 10 A |
Rated Voltage | 160 V |
Rated Voltage (UL) | 250 V |
Rated Voltage (CSA) | 250 V |
Conductor Cross-Section | 0.14 ... 2.5 mm² |
Material Insert | Polycarbonate (PC) |
Colour Insert | RAL 7032 (pebble grey) |
Packaging Size | 10 |
Net Weight | 14 g |
Country of Origin | Germany |
European Customs Tariff Number | 85366990 |
GTIN | 5713140018105 |
ETIM | EC000438 |
eClass | 27440205 Contact insert for industrial connectors |
Rated Impulse Voltage | 2.5 kV |
Pollution Degree | 3 |
Insulation Resistance | >1010 Ω |
Mating Cycles | ≥500 |
Datasheet Name | 09120173001 Datasheet Harting.pdf |
