Harting Han Q Insert, crimp, female, c/s 0.14 - 2.5mm², 10A

Product Overview

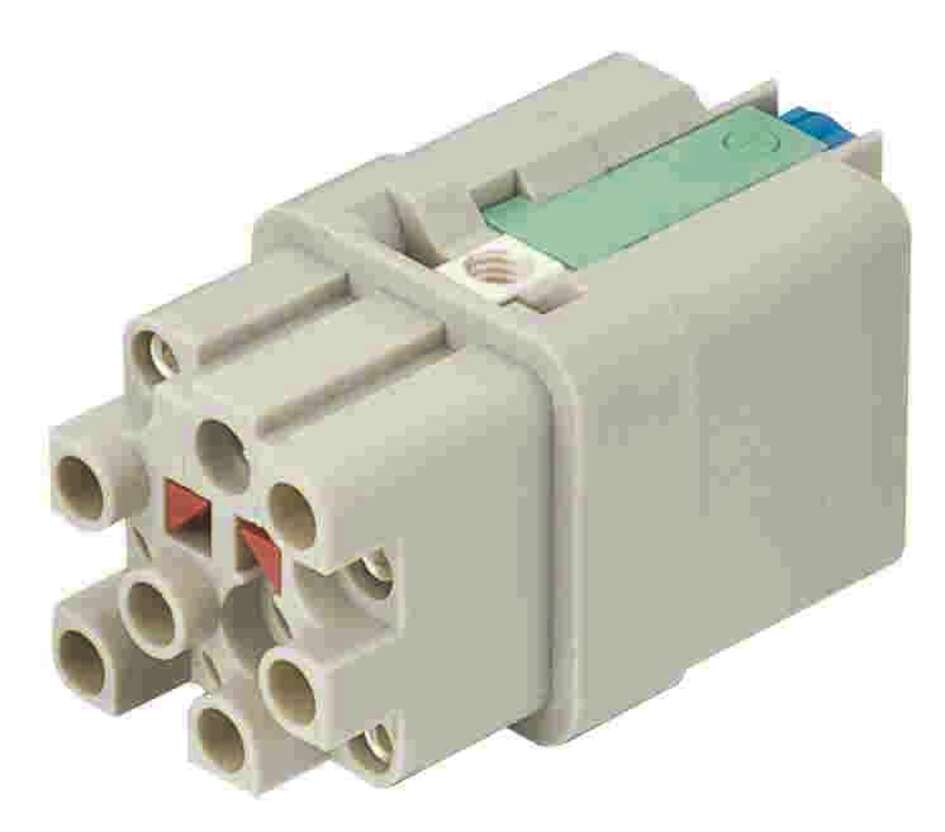

The Han 12Q-SMC-FI-CRT-PE with QL is a high-performance surface mount female connector insert designed for the HARTING Han® Q series with crimp termination and Han-Quick Lock® capability. This compact 12-contact insert with protective earth (PE) features surface mount compatibility and is optimized for industrial applications requiring reliable female electrical connections with maximum contact density in space-constrained installations.

Key Features

• Series: Han® Q
• Identification: 12/0
• Type: Surface Mount Connector (SMC)
• Gender: Female (FI)
• Termination Method: Crimp (CRT) with Han-Quick Lock® (QL)
• Contacts: 12 + PE (protective earth)
• Conductor Cross-Section: 0.14 - 2.5 mm²
• Rated Current: 10 A
• Size: 3A
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• PE Contact: Blue slide design
• Certification: UL 1977, CSA-C22.2

Technical Specifications

This female surface mount insert is part of the Han® Q series, featuring crimp termination with Han-Quick Lock® capability for fast and reliable assembly. The SMC (Surface Mount Connector) design enables direct PCB mounting applications while maintaining the robust industrial connector performance. The insert accommodates conductor cross-sections from 0.14 to 2.5 mm² and is rated for 10A current capacity. The 12-contact configuration provides maximum contact density for complex control and automation applications in the compact 3A size. The blue slide PE contact design ensures reliable protective earth connections. Note: Crimp contacts must be ordered separately.

Compliance & Environmental

• UL 1977 certified
• CSA-C22.2 certified
• UL 94 flammability rating
• Industrial-grade polycarbonate construction
• Han-Quick Lock® system compatibility
• Size 3A compatibility with Han® Q series
• Professional RAL 7032 finish

Applications

Ideal for industrial automation, control systems, and PCB-based applications requiring maximum contact density with surface mount capability. Perfect for complex control circuits, multi-channel data acquisition systems, and advanced automation applications where 12 female signal connections are needed in minimal space with direct PCB mounting. The surface mount design makes it excellent for modern industrial electronics, process control systems, and equipment requiring board-level connectivity with industrial-grade reliability.
