xProduct Overview

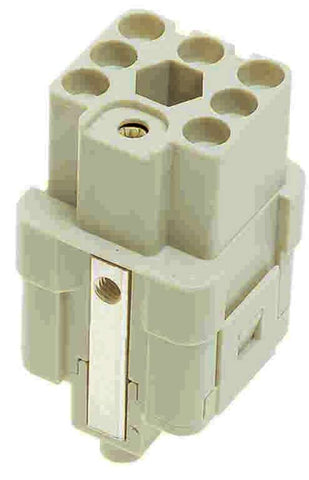

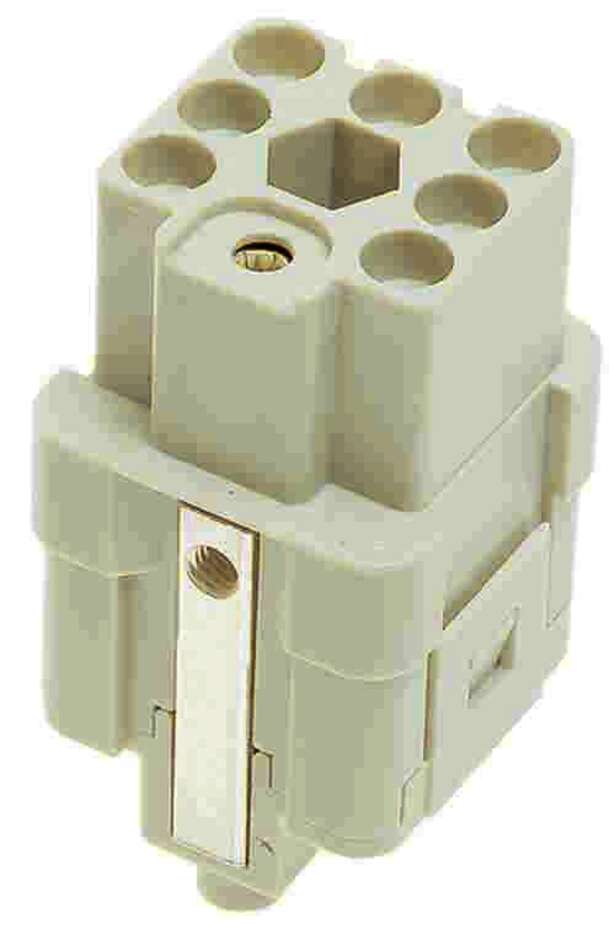

The Han Q 7/0-F is a high-performance female connector insert designed for the HARTING Han® Q series with crimp termination. This compact 7-contact insert with protective earth (PE) features crimp contact termination and is optimized for industrial applications requiring reliable female electrical connections with multiple signal paths in space-constrained installations.
Key Features
- Series: Han® Q
- Identification: 7/0
- Gender: Female
- Termination Method: Crimp
- Contacts: 7 + PE (protective earth)
- Conductor Cross-Section: 0.14 - 2.5 mm²
- Rated Current: 10 A
- Rated Voltage: 400 V / 600 V (UL/CSA)
- Size: 3A
- Material: Polycarbonate (PC)
- Color: RAL 7032 (pebble grey)
- Contact Material: Copper alloy, silver plated
- Application: Signal and control connections
Technical Specifications
This female insert is part of the Han® Q series, featuring crimp termination for secure and reliable electrical connections. The insert accommodates conductor cross-sections from 0.14 to 2.5 mm² and is rated for 10A at 400V/600V (UL and CSA). The 7-contact configuration provides multiple signal paths for complex control and automation applications. The crimp connection method provides superior mechanical retention and electrical performance for long-term reliability. The polycarbonate construction ensures excellent durability and environmental resistance. Note: Crimp contacts must be ordered separately.
Compliance & Environmental
- UL and CSA voltage ratings: 400V/600V
- Industrial-grade polycarbonate construction
- Silver-plated contacts for enhanced conductivity
- Size 3A compatibility with Han® Q series
- Rated for 10A current capacity
- Suitable for harsh industrial environments
Applications
Ideal for industrial automation, control systems, and instrumentation applications requiring multiple female signal connections in compact installations. Perfect for control panels, measurement equipment, sensor networks, and automation systems where space optimization and reliable multi-signal female connectivity are essential. The 7-contact configuration makes it suitable for complex control circuits, data acquisition systems, and multi-channel signal processing applications.
Download existing graphical data for this product:
Specifications
x| Category | Inserts |
| Series | Han® Q |
| Identification | 7/0 |
Version
| Termination method | Crimp termination |
| Gender | Female |
| Size | 3 A |
| Number of contacts | 7 |
| PE contact | Yes |
Technical characteristics
| Conductor cross-section | 0.14 - 2.5 mm² |
| Rated current | 10 A |
| Rated voltage | 400 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600 V |
| Rated voltage acc. to CSA | 600 V |
| Insulation resistance | >1010 Ω |
| Limiting temperature | -40 to 125°C |
| Mating cycles | ≥ 500 |
Material properties
| Material (insert) | Polycarbonate (PC) |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material flammability class acc. to UL 94 | V-0 |
| RoHS | compliant with exemption |
| RoHS exemptions | 6(c): Copper alloy containing up to 4 % lead by weight |
| ELV status | compliant with exemption |
| China RoHS | 50 |
| REACH Annex XVII substances | Not contained |
| REACH ANNEX XIV substances | Not contained |
| REACH SVHC substances | Yes |
| REACH SVHC substances | Lead |
| ECHA SCIP number | 5dbb3851-b94e-4e88-97a1-571845975242 |
| California Proposition 65 substances | Yes |
| California Proposition 65 substances | Lead |
| Fire protection on railway vehicles | EN 45545-2 (2020-08) |
| Requirement set with Hazard Levels | R22 (HL 1-3) |
| R23 (HL 1-3) |
Specifications and approvals
| Specifications | IEC 60664-1 |
| IEC 61984 | |
| UL / CSA | UL 1977 ECBT2.E235076 |
| CSA-C22.2 No. 182.3 ECBT8.E235076 | |
| Approvals | DNV GL |
Commercial data
| Packaging size | 10 |
| Net weight | 11 g |
| Country of origin | Romania |
| European customs tariff number | 85366990 |
| GTIN | 5713140017535 |
| eCl@ss | 27440205 Contact insert for industrial connectors |
| ETIM | EC000438 |
| UNSPSC 24.0 | 39121522 |
