Harting Han-Modular Eco Bulkhead mounted housing, p/grey
Harting Han-Modular Eco Bulkhead mounted housing, p/grey

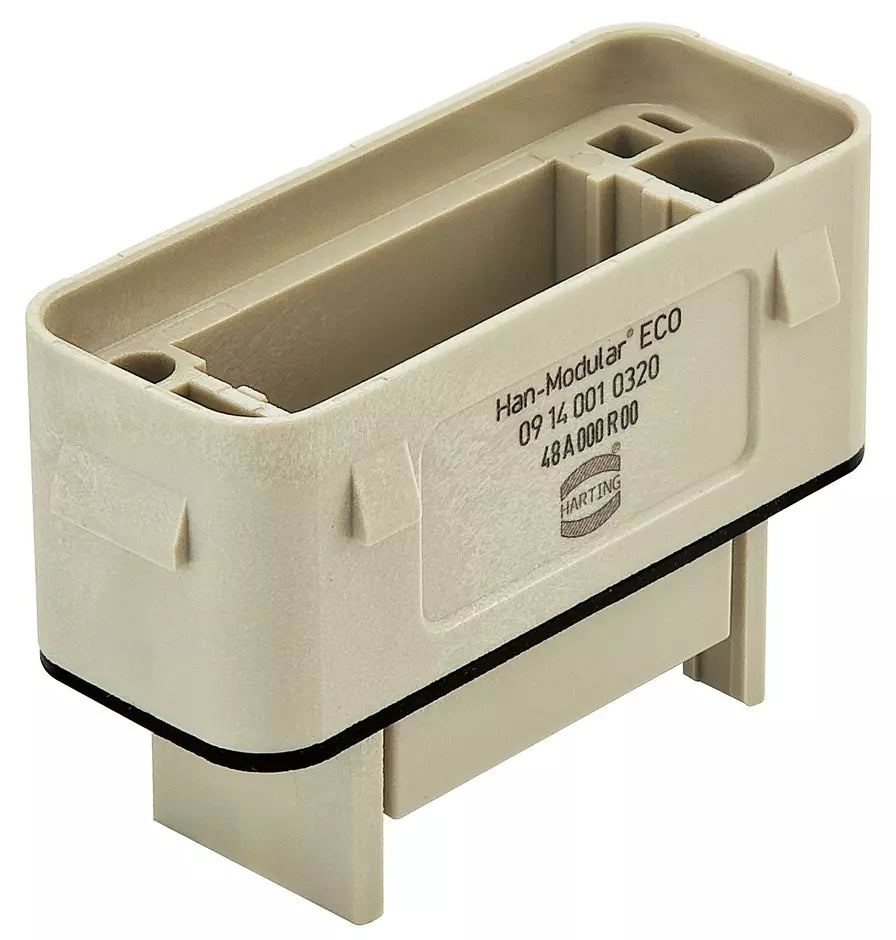

Harting Han-Modular Eco Bulkhead mounted housing, p/grey Part number 09140010320

This bulkhead mounted housing is part of the Harting Han-Modular Eco series, used to accommodate modular connector inserts within panel or enclosure walls in industrial automation applications. It is constructed from PC housing material with an NBR seal, providing an IP65 rating for protection against dust and water ingress. The...
Vendor: Harting
Rubicon Industrial Technology is the exclusive South African distributor for Harting.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This bulkhead mounted housing is part of the Harting Han-Modular Eco series, used to accommodate modular connector inserts within panel or enclosure walls in industrial automation applications. It is constructed from PC housing material with an NBR seal, providing an IP65 rating for protection against dust and water ingress. The housing carries a V-0 flammability rating and complies with IEC 60664-1 and IEC 61984, with CE marking.

Key specifications

  • IP rating: IP65
  • Flammability: V-0
Specifications
Specifications
x
IP RatingIP65
Tariff85389099
GTIN5713140019003
ETIMEC000437
Compliance/CertificationsIEC 60664-1 IEC 61984 / CE
FlammabilityV-0
Material: Housing / GripPC
Material: SealNBR
Packaging Size2 pc(s)
Weight (g)14.22g
Mating Cycles / Life Span≥500
