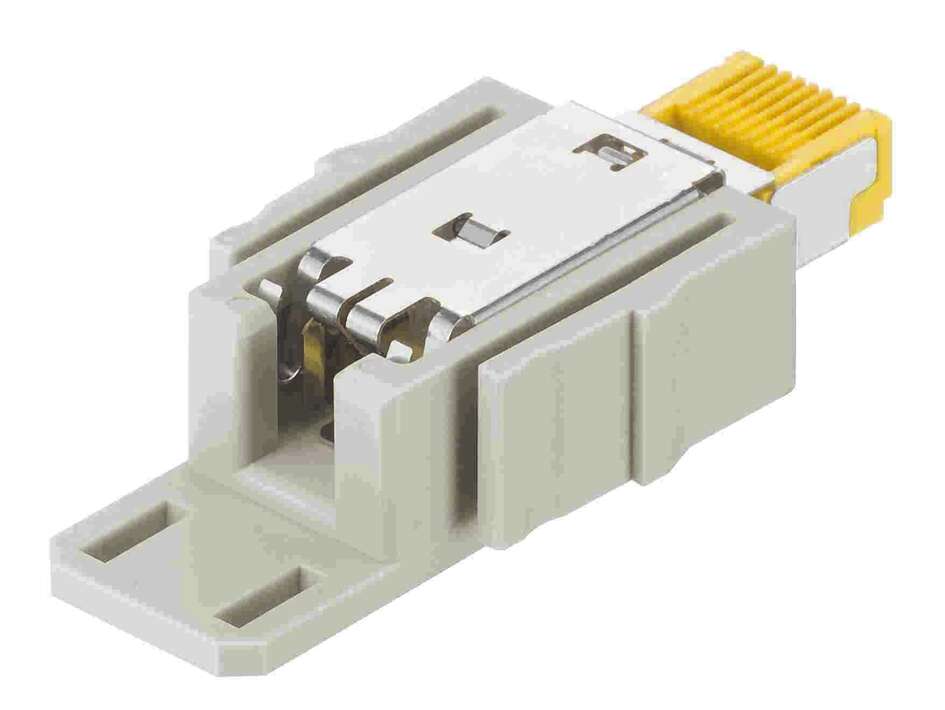

Harting Han-mod IDC termination, male, 8-contact, RJ45, 10G

Product Overview

The Han-Modular RJ45 10G Cat6 Plug 8p IDC is a modular insert connector for demanding industrial Ethernet applications requiring Cat6 performance within modular connector systems. Features IDC (Insulation Displacement Connection) technology for reliable high-speed data transmission. Part of the Han-Modular series, providing robust connectivity where modular flexibility, environmental protection, and 10G performance are critical.

Key Features

• Modular insert design for Han connector systems
• Cat6 Class E performance up to 250 MHz supporting 10G applications
• IDC (Insulation Displacement Connection) termination
• 8-pin configuration for full Ethernet connectivity
• Male insert configuration
• Industrial-grade construction for harsh environments
• Configurable design for system flexibility
• Shielded for EMI protection

Technical Specifications

• Connector Type: Modular RJ45 plug insert
• Performance: Cat6 Class E up to 250 MHz
• Contacts: 8 positions (8P8C)
• Termination: IDC (Insulation Displacement Connection)
• Configuration: Male insert
• Series: Han-Modular
• Element Type: Data connectors
• Data Rate: 10 Gigabit Ethernet capable
• Specification: RJ Industrial

Applications

• Industrial automation requiring modular Ethernet connectivity
• Manufacturing systems with Han-Modular requirements
• Process control cabinets requiring high-speed data
• Modular connector systems requiring Cat6 performance
• Industrial equipment with removable Ethernet connections

Compatibility

• Compatible with Han-Modular connector systems
• Suitable for Cat6 network cables
• Part of HARTING Han-Modular series
• Standard RJ45 equipment compatibility
• Designed for industrial environments

Environmental Protection

• Industrial Design: Robust construction for harsh environments
• Shielding: EMI protection for reliable transmission
• Modular System: Flexible configuration options
• Performance: Cat6 Class E up to 250 MHz

Certifications and Compliance

• Standards: Cat6 Class E transmission standard
• Performance: 10 Gigabit Ethernet capable
• Specification: RJ Industrial
• Frequency Range: Up to 250 MHz
• RoHS: Compliant
• Country of Origin: Germany
