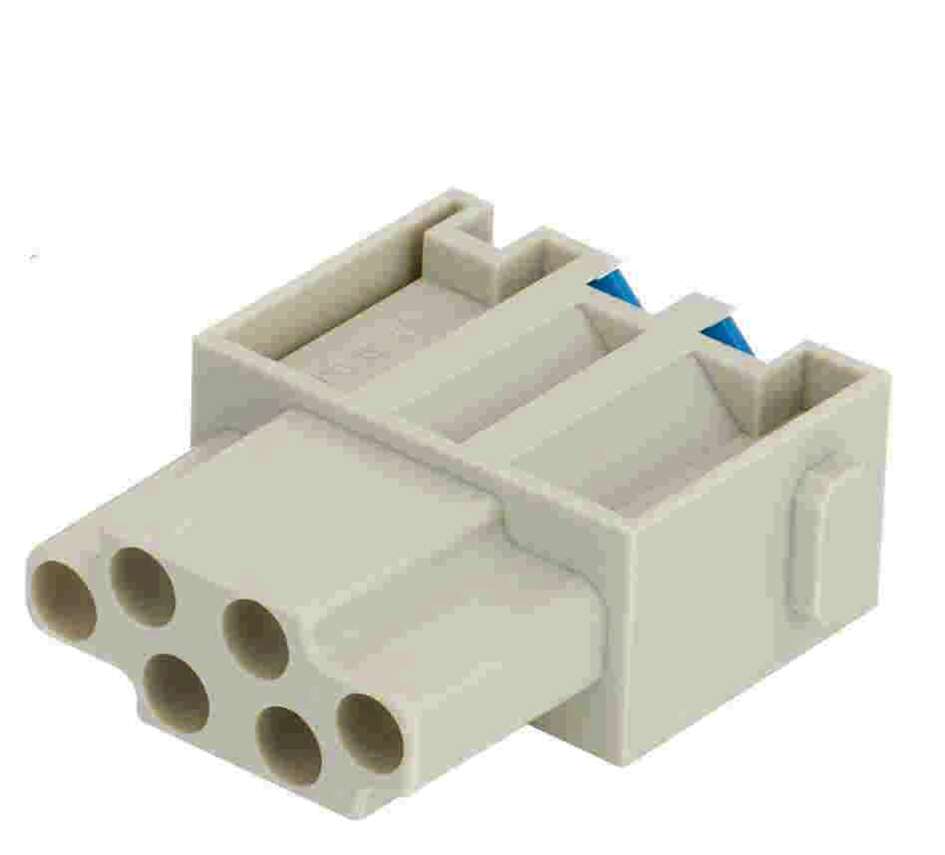

Harting Han E Quick-lock module, single, female, c/s 0.5 - 2.5mm²

Product Overview

The Han E Quick-Lock module, female is a signal transmission module designed for the HARTING Han-Modular® connector system with advanced Han-Quick Lock® termination technology. This single-module female insert features tool-free termination and is engineered for reliable 16A signal and low-power connections. The module accommodates conductor cross-sections from 0.5 to 2.5 mm² and provides robust electrical transmission capabilities within the modular Han-Modular® system with 6 contacts for versatile signal and power applications using the innovative Han-Quick Lock® technology.

Key Features

• Series: Han-Modular®
• Category: Signal/Power Transmission Module
• Type: Han E® module
• Module Size: Single module
• Termination Method: Han-Quick Lock® termination
• Gender: Female
• Contacts: 6
• Current Rating: 16 A
• Voltage Rating: 500 V (rated voltage), 600 V (UL rated)
• Conductor Cross-Section: 0.5 - 2.5 mm²
• Wire Outer Diameter: ≤3.6 mm
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy, silver plated

Technical Specifications

This female Han E Quick-Lock module provides reliable signal and power transmission capabilities with a rated current of 16A and conductor cross-section accommodation from 0.5 to 2.5 mm². The module features a rated voltage of 500V with 600V UL rating and rated impulse voltage of 6kV with pollution degree 3 classification. The operating temperature range spans -40°C to +125°C for stranded wire according to IEC 60228 Class 5. The robust polycarbonate construction with silver-plated copper alloy contacts ensures reliable performance with insulation resistance >10¹⁰ Ω, contact resistance ≤1 mΩ, and mating cycles ≥500. The single-module Han-Quick Lock® termination design provides tool-free connections for signal and low-power applications while maintaining the modular flexibility of the Han-Modular® system. The 6-contact female configuration accepts male connections for reliable electrical reception with the convenience of Quick-Lock technology.

Compliance & Environmental

• Rated voltage: 500V (600V UL rated)
• Rated impulse voltage: 6kV
• Pollution degree 3 classification
• Operating temperature range: -40°C to +125°C
• Mating cycles: ≥500
• Insulation resistance: >10¹⁰ Ω
• Contact resistance: ≤1 mΩ
• Industrial-grade polycarbonate construction
• Professional RAL 7032 finish
• Silver-plated copper alloy contacts
• IEC 60228 Class 5 stranded wire compatibility

Applications

Ideal for industrial control systems, signal distribution panels, and machinery requiring reliable 16A female connections with convenient Han-Quick Lock® termination for 6-contact applications. Perfect for applications where signal and low-power reception is needed through modular connector assemblies with tool-free installation, including industrial automation equipment, control electronics, and manufacturing systems. Excellent for process control systems, instrumentation applications, and industrial networks where robust 16A female connections are essential for signal distribution with conductor cross-sections from 0.5 to 2.5 mm². The Han-Quick Lock® technology makes it particularly suitable for applications requiring quick installation, field assembly, or frequent maintenance where tool-free connections provide significant advantages in productivity and reliability for female connectivity requirements.
