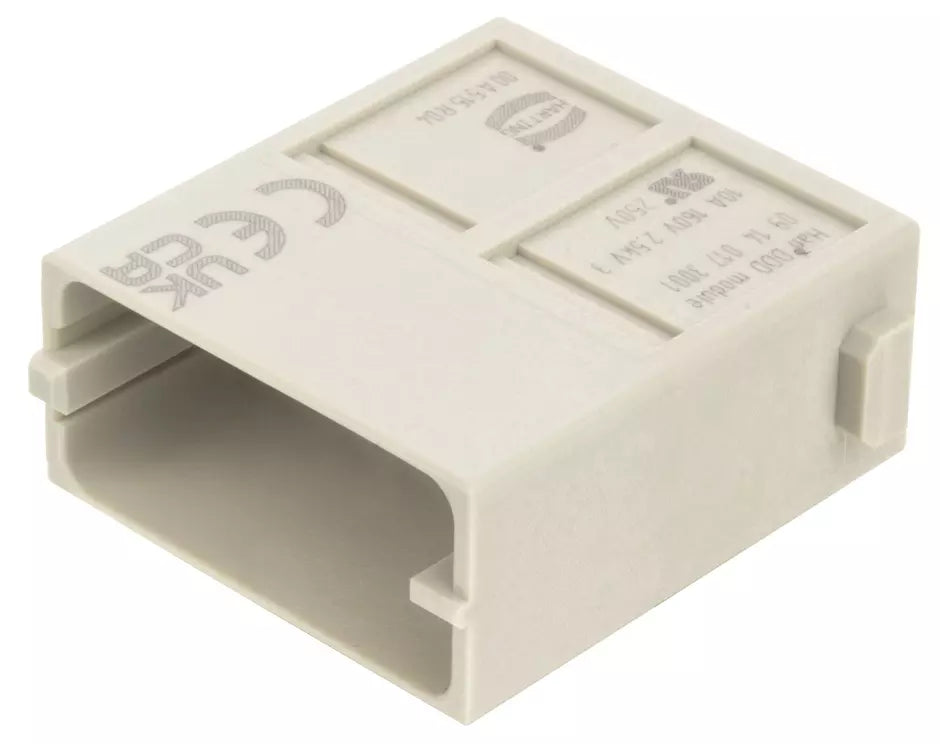

Harting Han DDD module, crimp, male, c/s 0.14 - 2.5mm² Part number 09140173001

The Harting Han DDD module is a male crimp insert with 17 contacts, accepting conductor cross sections of 0.14 to 2.5 mm². It is rated at 160 V and 10 A, with a PC insert material and V-0 flammability rating, and carries IEC 60664-1, IEC 61984, UL 1977, UL 2237,...
Vendor: Harting
Rubicon Industrial Technology is the exclusive South African distributor for Harting.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

The Harting Han DDD module is a male crimp insert with 17 contacts, accepting conductor cross sections of 0.14 to 2.5 mm². It is rated at 160 V and 10 A, with a PC insert material and V-0 flammability rating, and carries IEC 60664-1, IEC 61984, UL 1977, UL 2237, CSA-C22.2 No. 182.3 and DNV GL compliance. This module is used within Han industrial connector housings for field wiring in automation and control panel applications.

Key specifications

  • Rated voltage: 160 V
  • Connection: Male / 17 Contacts
  • Colour: Pebble Grey
  • Flammability: V-0
Specifications
Specifications
x
Tariff85389099
GTIN5713140021167
ETIMEC000438
Compliance/CertificationsIEC 60664-1 IEC 61984 / UL 1977 ECBT2.E235076 UL 2237 PVVA2.E318390 CSA-C22.2 No. 182.3 PVVA8.E318390 / DNV GL
FlammabilityV-0
Material: InsertPC
Packaging Size2 pc(s)
Weight (g)4.5g
Conductor Cross-section0.14 - 2.5 mm²
Connection TypeMale / 17 Contacts
Connection StyleCrimp termination
Mating Cycles / Life Span≥500
Rated Voltage160 V
Rated Operating Current10A
ColourPebble Grey
RAL CodeRAL 7032
Documents
Documents
x
Download Datasheet
