Harting Han DD Module, crimp, male, c/s 0.14 - 2.5mm²

Product Overview

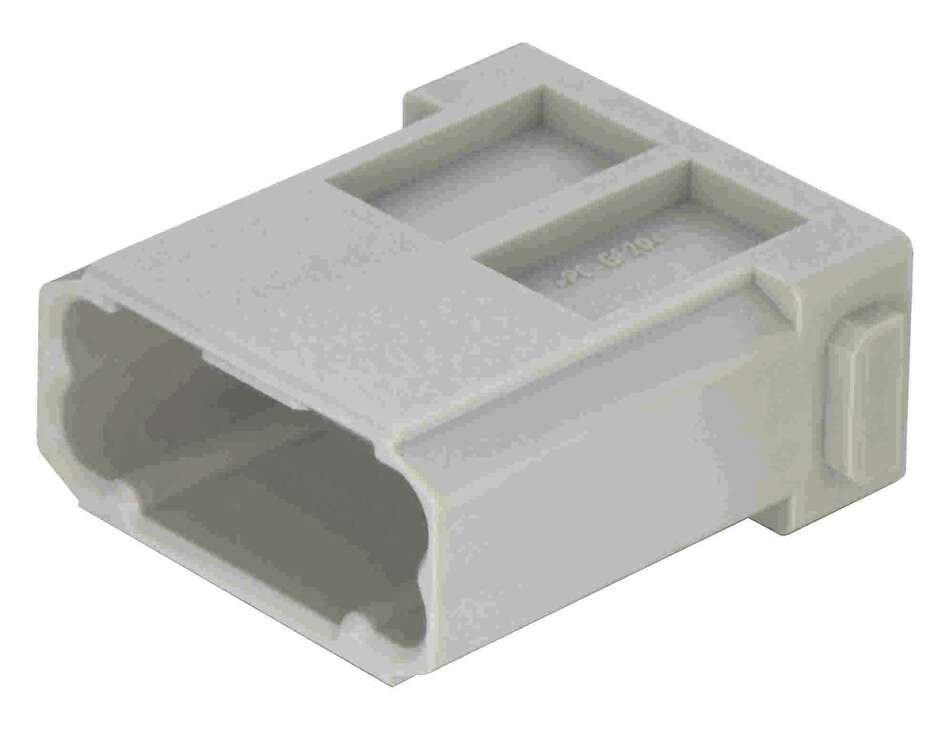

The Han DD module, crimp male is a power transmission module designed for the HARTING Han-Modular® connector system with crimp termination technology. This single-module male insert features reliable crimp connections and is engineered for dependable 10A power and signal transmission with 12 contacts for industrial heavy-duty applications using proven crimp technology with pebble grey housing identification.

Key Features

• Series: Han-Modular®
• Category: Modules
• Type: Han DD® module
• Module Size: Single module
• Termination Method: Crimp termination
• Gender: Male
• Contacts: 12
• Current Rating: 10 A
• Voltage Rating: 250 V (rated voltage), 600 V (UL rated)
• Conductor Cross-Section: 0.14 - 2.5 mm²
• Operating Temperature: -40°C to +125°C
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy contacts
• Flammability Class: UL 94 V-0

Technical Specifications

This male Han DD crimp module provides reliable power and signal transmission with a rated current of 10A and conductor cross-section accommodation from 0.14 to 2.5 mm². The module features 250V rated voltage with 600V UL rating and robust crimp termination design. The operating temperature range spans -40°C to +125°C with proven crimp connection reliability. The durable polycarbonate construction with copper alloy contacts ensures dependable performance while the crimp termination design provides secure connections for industrial applications. The module offers exceptional flexibility as part of the Han-Modular system, allowing integration of multiple connectors into a single unit for significant space savings.

Compliance & Environmental

• Operating temperature: -40°C to +125°C
• Material flammability: UL 94 V-0 classification
• Conductor cross-section: 0.14 - 2.5 mm²
• Rated current: 10 A at 250V
• UL rated voltage: 600 V
• CSA-C22.2 No. 182.3 approved
• Robust polycarbonate housing construction
• Industrial-grade crimp termination system
• Compatible with Han® docking frame systems

Applications

Ideal for industrial control systems, power distribution panels, and machinery requiring reliable 10A male connections with secure crimp termination. Perfect for protected electrical areas ranging from control cabinets to outdoor applications where dependable electrical connections are critical. Suitable for industrial automation equipment, motor controls, and manufacturing systems where the modular design provides flexibility to accommodate signal and power circuits along with fiber optic or compressed air lines in a single connector.
