Harting Han D Crimp contact, male, c/s 0.14 - 0.37mm²

Product Overview

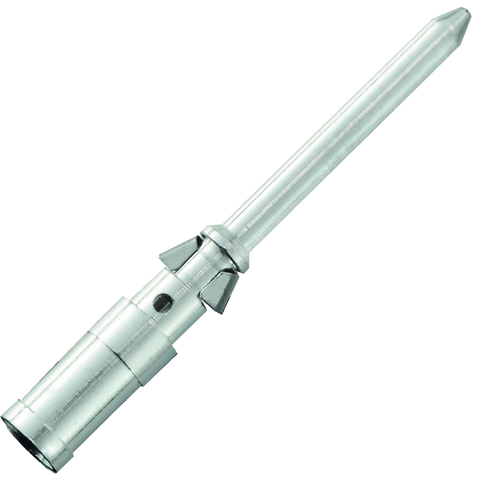

The R 15-STI-C-0,14-0,37 QMM-AWG26-22 is a male crimp contact designed for the HARTING R 15 and Han D® connector series. This high-performance contact features silver-plated copper alloy construction with variable conductor cross-section capability from 0.14 to 0.37 mm², engineered for reliable 10A electrical connections using crimp termination technology for AWG 26-22 wire applications in industrial circular connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Male (pin contact)
• Current Rating: ≤10 A
• Conductor Cross-Section: 0.14 - 0.37 mm²
• Wire Size: AWG 26 - AWG 22
• Contact Material: Copper alloy
• Plating: Silver plated
• Termination Method: Crimp termination
• Application: R 15 series connectors
• Manufacturing Process: Turned contacts
• Mating Cycles: ≥500
• Strip Length: 8 mm

Technical Specifications

This R 15-STI-C male crimp contact provides reliable electrical connection with a rated current of up to 10A for variable conductor cross-section from 0.14 to 0.37 mm² (AWG 26-22) applications. The copper alloy construction with silver plating ensures excellent electrical conductivity, corrosion resistance, and long-term reliability. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering. The turned contact manufacturing process ensures precise dimensions and consistent performance with ≥500 mating cycles capability. The strip length requirement is 8 mm, and the contact accommodates a wide range of fine wire gauges for versatile applications.

Compliance & Environmental

• Operating current: ≤10 A
• Conductor cross-section: 0.14 - 0.37 mm² (AWG 26-22)
• Mating cycles: ≥500
• Strip length: 8 mm
• Silver-plated copper alloy construction
• Crimp termination technology
• Compatible with R 15 series connectors
• Compatible with Han D® series
• Turned contact manufacturing process
• High conductivity and corrosion resistance

Applications

Ideal for industrial control systems, instrumentation, and fine wire signal transmission applications requiring reliable electrical connections with variable wire gauge compatibility in R 15 circular connector assemblies. Perfect for applications where crimp termination provides secure wire connection for fine gauge conductors from AWG 26 to AWG 22 without soldering, such as sensor connections, control signals, data transmission, and precision instrumentation circuits. Suitable for applications requiring flexible wire gauge options while maintaining 10A current capability, making it particularly useful for signal and control applications in demanding industrial environments where wire size optimization is critical.
