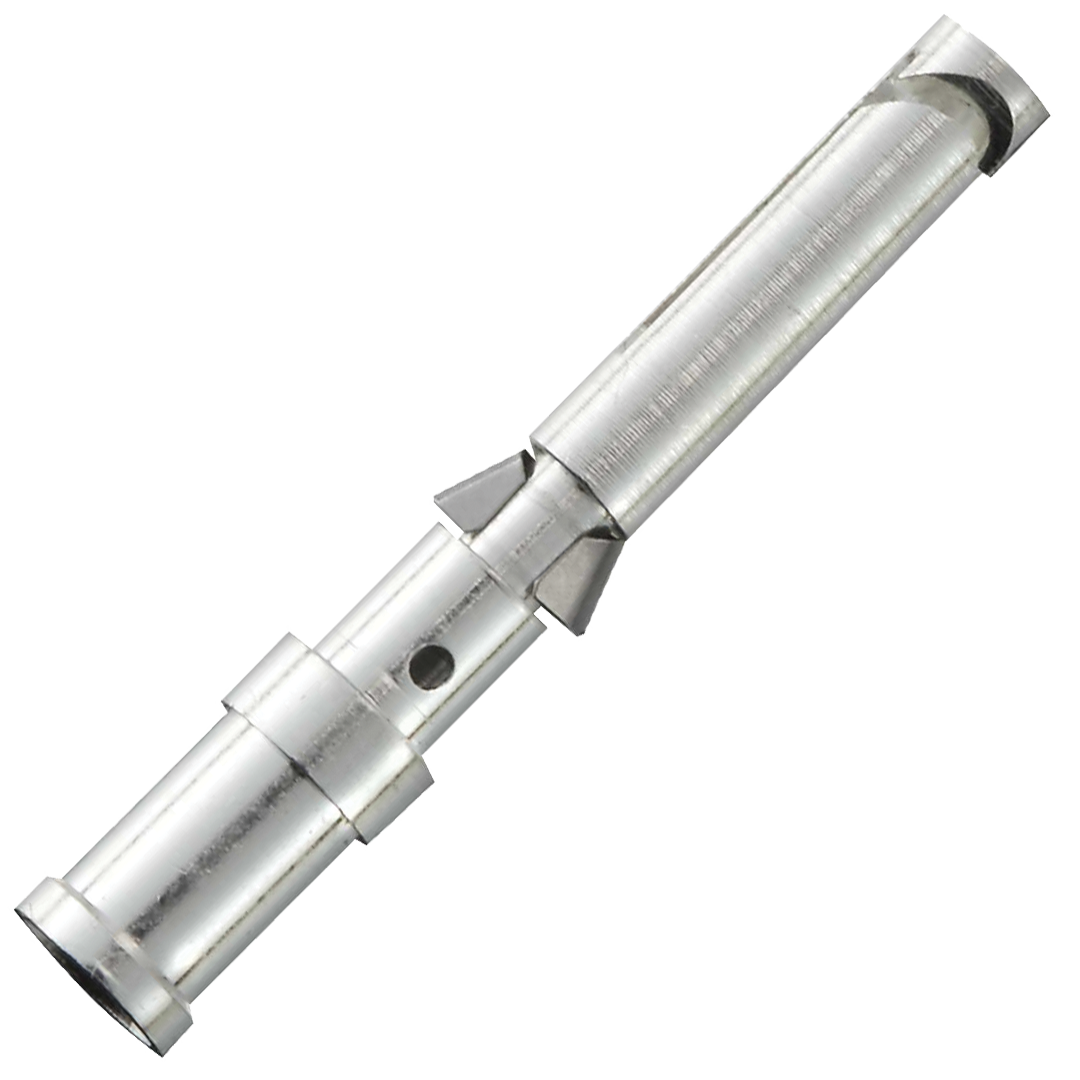

Harting Han D Crimp contact, female, c/s 0.75mm², 10A Harting
Harting Han D Crimp contact, female, c/s 0.75mm², 10A Harting

Harting Han D Crimp contact, female, c/s 0.75mm², 10A Part number 09150006205

This is a female crimp contact for use with Harting Han D connector inserts, terminating conductors of 0.75 mm² (AWG 18) cross section with an 8mm stripping length. It is a turned contact rated for a maximum operating current of 10A, with a contact resistance of ≤3 mΩ. Such contacts...
Vendor: Harting
Rubicon Industrial Technology is the exclusive South African distributor for Harting.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This is a female crimp contact for use with Harting Han D connector inserts, terminating conductors of 0.75 mm² (AWG 18) cross section with an 8mm stripping length. It is a turned contact rated for a maximum operating current of 10A, with a contact resistance of ≤3 mΩ. Such contacts are used within modular industrial connector housings for building up multi-pole power and signal connections on panels and machinery.

Key specifications

  • Connection: Female / Turned Contacts
Specifications
Specifications
x
Tariff85366990
GTIN5713140022089
ETIMEC000796
Compliance/CertificationsIEC 60664-1 IEC 61984
Stripping Length (mm)8mm
Weight (g)0.3g
Conductor Cross-section0.75 mm² - AWG 18
Connection TypeFemale / Turned Contacts
Mating Cycles / Life Span≥500
Contact Resistance≤3 mΩ
Rated Operating Current≤10 A
Documents
Documents
x
Download Datasheet
