Harting Han D Crimp contact, female, c/s 0.14 - 0.37mm²

Product Overview

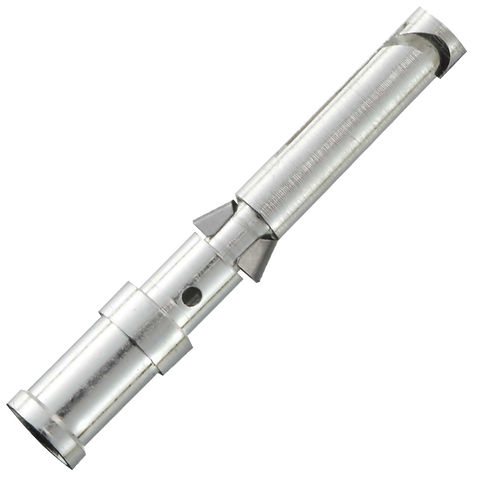

The Han D F Crimp Contact Ag AWG 26 - 22 is a female crimp contact designed for the HARTING Han D® connector series. This high-performance contact features silver-plated copper alloy construction with 0.14 ... 0.37 mm² conductor cross-section capability, engineered for reliable 10A electrical connections using crimp termination technology for AWG 26 - AWG 22 wire applications in industrial heavy-duty connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Female (socket contact)
• Current Rating: 10 A
• Conductor Cross-Section: 0.14 ... 0.37 mm²
• Wire Size: AWG 26 - AWG 22
• Contact Material: Copper alloy
• Plating: Silver plated (Ag)
• Termination Method: Crimp termination
• Application: Han D, Han DD, Han 8/U, HAN Q 7, Han K series
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤3 mΩ
• Multi-gauge compatibility: Ultra-fine to fine wire range

Technical Specifications

This Han D female crimp contact provides reliable electrical connection with a rated current of 10A for 0.14 ... 0.37 mm² conductor cross-section (AWG 26 - AWG 22) applications. The copper alloy construction with silver plating ensures excellent electrical conductivity, corrosion resistance, and long-term reliability with contact resistance ≤3 mΩ. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering, offering a solderless method ideal for creating long-lasting and reliable connections. The turned contact manufacturing process ensures precise dimensions and consistent performance. Compatible with Han D, Han DD, Han 8/U, HAN Q 7, and Han K series inserts, this contact is designed for demanding industrial applications requiring dependable electrical connections with ultra-fine to fine wire compatibility across multiple gauge ranges.

Compliance & Environmental

• Rated current: 10 A
• Conductor cross-section: 0.14 ... 0.37 mm² (AWG 26 - AWG 22)
• Contact resistance: ≤3 mΩ
• Silver-plated copper alloy construction
• Crimp termination technology
• Compatible with multiple Han series inserts
• Turned contact manufacturing process
• Superior conductivity and corrosion resistance
• Multi-gauge wire compatibility
• Suitable for ultra-fine wire applications
• German engineering and manufacturing

Applications

Ideal for precision instrumentation, signal transmission, data communication, and control applications requiring reliable electrical connections with ultra-fine to fine wire compatibility in Han D heavy-duty connector assemblies. Perfect for applications where crimp termination provides secure wire connection for AWG 26 through AWG 22 conductors without soldering, such as sensor connections, data transmission lines, control signals, and precision measurement circuits. Suitable for high-density applications and precision instrumentation where ultra-fine wires are required for signal integrity and space constraints. The female socket design makes it ideal for mating with male pin contacts in applications requiring secure, removable electrical connections with superior environmental protection. The broad wire gauge compatibility (AWG 26-22) provides exceptional flexibility for various application requirements while maintaining consistent performance across the wire range, making it perfect for complex systems requiring multiple wire gauges in a single connector assembly.
