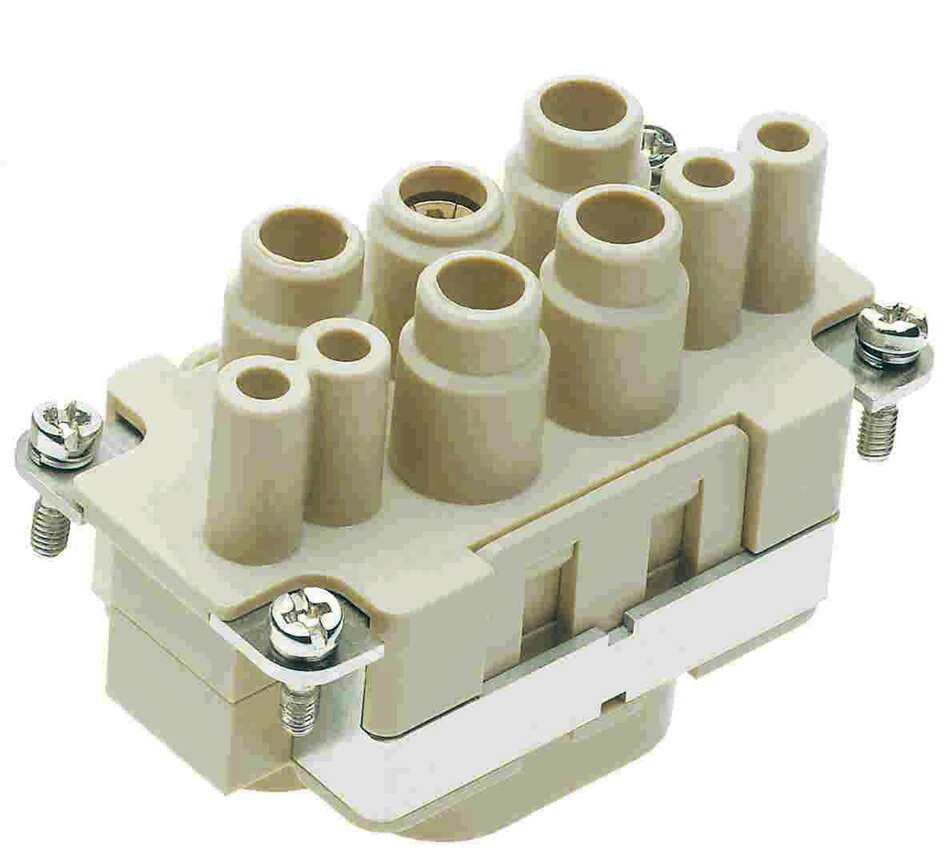

Harting Han-Com Insert, axial screw, female, p/grey, size 10B, 63A

Product Overview

The Han K4/4-F 6-16mm² Finger Protected Insert is a high-performance female connector insert for industrial applications requiring power and signal transmission with enhanced safety. Features finger protection technology and axial screw/cage clamp termination. Part of the Han-Com® series with size 10B configuration, providing dual-function connectivity where operator safety is paramount.

Key Features

• 4 power + 4 signal + PE contacts for dual-function connectivity
• Female configuration with finger protection safety design
• Axial screw/cage clamp termination for secure connections
• Power: 6-16 mm² / Signal: 0.14-2.5 mm² conductor range
• Touch-safe design prevents accidental contact
• Silver-plated copper alloy contacts
• Grey polycarbonate housing, size 10B
• Compatible with Han HPR hoods and housings exclusively

Technical Specifications

• Power Current Rating: 63A
• Signal Current Rating: 16A
• Power Rated Voltage: 690V
• Signal Rated Voltage: 250V
• Power Conductor Cross-Section: 6-16 mm²
• Signal Conductor Cross-Section: 0.14-2.5 mm²
• Number of Contacts: 9 total (4 power + 4 signal + 1 PE)
• Housing Size: 10B
• Series: Han-Com®
• Termination Type: Axial screw/cage clamp connection
• Housing Material: Polycarbonate (PC)
• Contact Material: Silver-plated copper alloy
• Housing Color: Grey
• Safety Feature: Finger protection design

Installation Details

• Power contacts: Axial screw termination for 6-16 mm²
• Signal contacts: Cage clamp termination for 0.14-2.5 mm²
• PE contact: Dedicated protective earth connection
• Finger protection: Integrated safety design
• Compatible with standard Han-Com installation tools

Applications

• Industrial machinery requiring power and control signals
• Automation equipment with safety requirements
• Manufacturing systems with operator interaction
• Robotics applications requiring dual-function connectivity
• Process control systems with safety considerations
• Equipment requiring touch-safe electrical connections

Compatibility

• Compatible exclusively with Han HPR hoods and housings in size 10B
• Available in straight or angled housing configurations
• Compatible with corresponding Han K4/4 male inserts
• Must be used only with Han HPR series connector housings

Important Configuration

• Connectors should not be mated or unmated under electrical load
• Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection
• Proper identification of power versus signal contacts is critical for correct wiring
• Ensure adequate cable management for mixed conductor sizes
• Follow safety protocols when working with finger-protected contacts

Safety Features

• Finger Protection: Enhanced safety design prevents accidental contact with live parts
• Touch-Safe Design: Complies with industrial safety standards
• Secure Termination: Axial screw and cage clamp connections ensure reliable retention
• Dual Isolation: Separate power and signal contact zones
• Robust Construction: Grey polycarbonate housing withstands industrial environments

Certifications and Compliance

• Standards: IEC 60664-1, IEC 61984
• UL Certification: UL 1977, UL 2237
• CSA Certification: CSA-C22.2 No. 182.3
• RoHS: Compliant
• Safety Standards: Finger protection compliant with industrial safety requirements
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant with applicable exemptions
• REACH compliance documentation available
• Industrial safety standards compliant
• Finger protection meets touch-safe requirements
