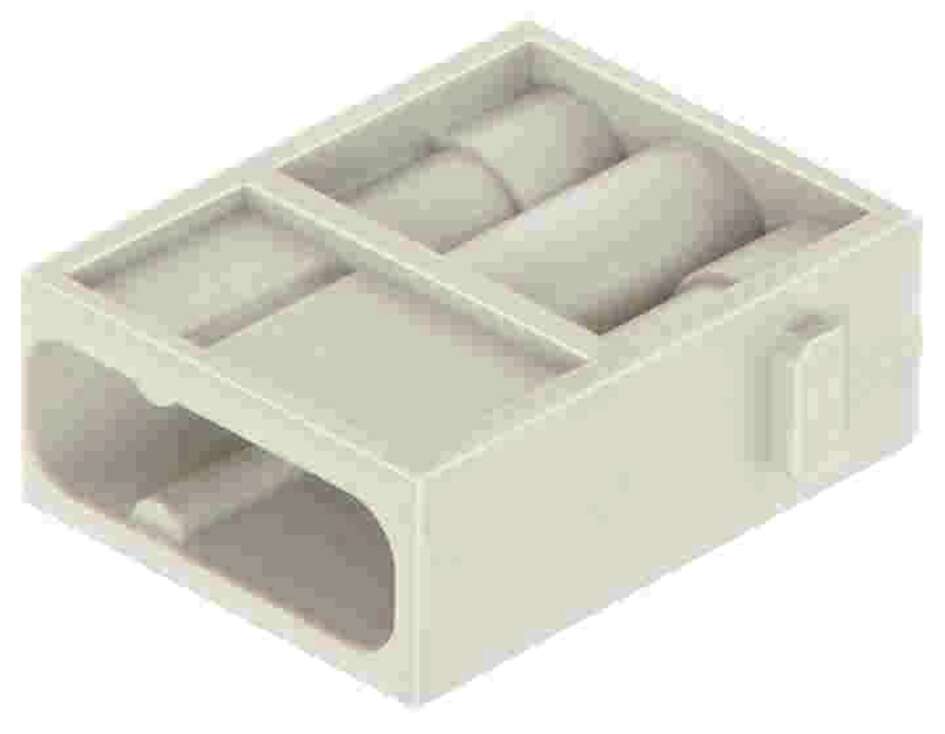

Harting Han C module, crimp, male, c/s 1.5 - 6mm², 40A

Here's the updated complete product description for SKU 09140033002 without the technical drawing:

Product Overview

The Han C module, crimp male is a power transmission module designed for the HARTING Han-Modular® connector system. This single-module male insert features crimp termination and is engineered for medium-current applications requiring reliable 40A power connections. The module accommodates conductor cross-sections from 1.5 to 6 mm² and provides robust power transmission capabilities within the modular Han-Modular® system with 3 contacts for versatile electrical connections using crimp technology for 7.5mm applications.

Key Features

• Series: Han-Modular®
• Category: Power Transmission Module
• Type: Han® C module
• Module Size: Single module
• Termination Method: Crimp termination
• Gender: Male
• Contacts: 3
• Current Rating: 40 A
• Voltage Rating: 690 V (rated voltage), 600 V (UL rated)
• Conductor Cross-Section: 1.5 - 6 mm²
• Wire Outer Diameter: ≤7.8 mm
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Type: Crimp contacts (not supplied)
• Application: For 7.5mm configurations

Technical Specifications

This male Han C crimp module provides reliable power transmission capabilities with a rated current of 40A and conductor cross-section accommodation from 1.5 to 6 mm². The module features a rated voltage of 690V with 600V UL rating and rated impulse voltage of 8kV with pollution degree 3 classification. The operating temperature range spans -40°C to +125°C with stripping length requirements of 9.5mm (12mm for wire outer diameter >4.8mm). The robust polycarbonate construction ensures reliable performance with insulation resistance >10¹⁰ Ω and mating cycles ≥500. The single-module crimp termination design provides secure connections for medium-current applications while maintaining the modular flexibility of the Han-Modular® system. The male configuration is specifically designed for 7.5mm applications and delivers power to female connections in versatile industrial applications. Note: Crimp contacts must be ordered separately.

Compliance & Environmental

• Rated voltage: 690V (600V UL rated)
• Rated impulse voltage: 8kV
• Pollution degree 3 classification
• Operating temperature range: -40°C to +125°C
• Mating cycles: ≥500
• Insulation resistance: >10¹⁰ Ω
• UL 94 V-0 flammability classification
• Industrial-grade polycarbonate construction
• Professional RAL 7032 finish

Applications

Ideal for medium-power industrial applications including control systems, power distribution panels, and machinery requiring reliable 40A male connections with crimp termination for 7.5mm configurations. Perfect for applications where medium-current power transmission is needed through modular connector assemblies, including industrial automation equipment, control electronics, and manufacturing systems. Excellent for process control systems, motor control applications, and industrial networks where robust 40A male connections are essential for power distribution with conductor cross-sections from 1.5 to 6 mm². The single-module design and crimp termination make it suitable for applications requiring secure, medium-current connections in demanding industrial environments with 7.5mm assembly requirements.
