Harting Han B Protection cover, double locking lever, size 10B

Product Overview

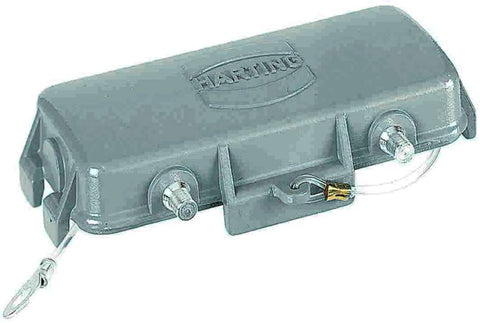

The Han 10B Protection Cover (SKU: 09300105425) is a metal protective cover with securing flex designed for Han® B series size 10B housings. Features double locking lever mechanism and provides IP65 environmental protection for industrial connector applications.

Key Features:

• Metal Construction: Durable protective cover for harsh environments
• Double Locking Lever: Polycarbonate + stainless steel locking mechanism
• Securing Flex: Integrated retention system prevents loss
• IP65 Protection: Superior sealing against dust and water ingress
• Size 10B Compatibility: Designed specifically for Han 10B housings

Technical Specifications:

• Article Number: 09 30 010 5425
• Series: Han® B
• Size: 10B
• Type: Protection cover with securing flex
• Locking: Double locking lever
• Material: Metal with polycarbonate/stainless steel components
• Protection Rating: IP65 (IEC 60529)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances

Applications: Essential for protecting Han 10B connector housings during maintenance, storage, or when connections are temporarily disconnected. The securing flex prevents cover loss in industrial environments.

Compatibility: Compatible with Han® B series size 10B housings and connector systems. Securing flex ensures cover remains attached to housing when not in use.

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
