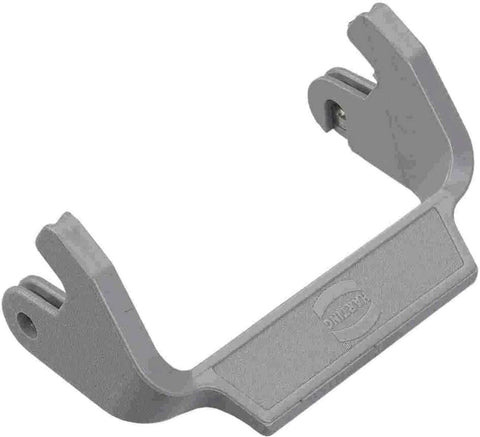

Harting Han B Locking lever, single, size 24B Part number 09000005230

Product Overview

The Han-Easy Lock® 24B, SL is a high-quality single locking lever system designed for HARTING Han® B series heavy-duty connectors. This innovative locking mechanism combines polycarbonate and stainless steel construction to provide secure, reliable connector engagement and release in demanding industrial applications, specifically optimized for size 24B connectors.

Key Features

• Series: Han® B
• Size Compatibility: 24B
• Locking Type: Single locking lever (SL)
• Material: Polycarbonate (PC) and Stainless Steel
• Color: RAL 7037 (dust grey)
• Flammability Rating: UL 94 V-0
• Type: Han-Easy Lock® system
• Application: Heavy-duty power connector accessories
• Configuration: Single lever design
• Housing Type: Compatible with standard Han® B housings

Technical Specifications

This locking lever accessory is part of the Han-Easy Lock® system, specifically designed for Han® B series connectors in size 24B. The single locking lever (SL) configuration provides reliable security and ease of operation for larger connector housings. The combination of polycarbonate and stainless steel materials ensures excellent durability, corrosion resistance, and mechanical strength suitable for high-current applications. The UL 94 V-0 flammability rating confirms its suitability for safety-critical applications in industrial environments.

Compliance & Environmental

• UL 94 V-0 flammability rating
• RoHS compliant materials
• Industrial-grade construction
• Suitable for harsh environments
• Color-coded for easy identification (RAL 7037)

Applications

Ideal for industrial applications requiring secure and user-friendly connector locking mechanisms for larger connector sizes. The Han-Easy Lock® system is perfect for heavy-duty power connectors in automotive, mechanical engineering, process control, and automation applications. The single lever design provides excellent mechanical protection and ensures reliable electrical connections in demanding environments where high power transmission and connector integrity are critical.
